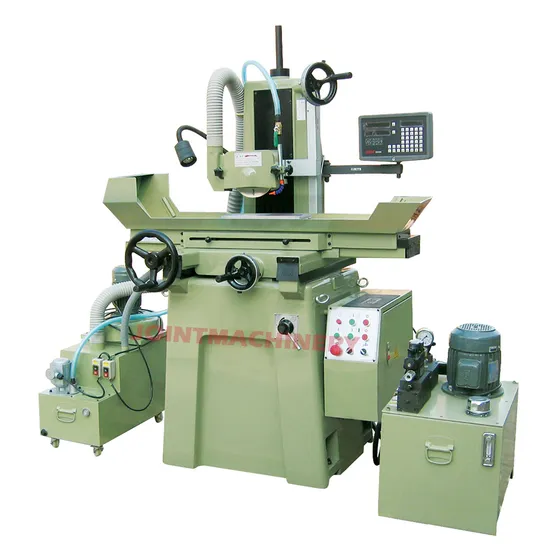

Precision Grinding Machine Reliable Surface Grinder Machine for Metal Fabrication

Product Description

1. Unmatched Structural Rigidity
The foundation and column of our machine boast an exceptionally robust and stable architecture, crafted from high-strength, wear-resistant cast iron. Subjected to multiple aging processes, internal stress is entirely eradicated, assuring enduring precision. The guide rails, a testament to superior wear resistance, guarantee exceptional accuracy and longevity.
2.Premium Quality Grinding Head
Our machine features a world-renowned, high-precision spindle system sourced from Taiwan, equipped with P4 ultra-precision bearings. The spindle boasts a taper end deflection within an impressive 2µm, powered by a V-3 low-vibration motor. Experience high-speed rotation with minimal noise and zero vibration, designed for heavy-duty cutting and intricate molding grinding tasks with remarkable load-bearing capacity.
3.Precision-Engineered Feed Structure
Equipped with top-tier imported TUR CITE-B wear-resistant guide rail sheets, our machine's slides undergo meticulous precision scraping, ensuring unparalleled accuracy. The column and spindle head guide rail align with high precision, making this ideal for precision-forming grinding of diverse grooves.
4.Advanced Automatic Lubrication System
Upon spindle activation, the lubrication pump automatically services all screws and sliding surfaces, minimizing wear and preserving both accuracy and longevity.
5.Robust Dust Protection System
Dust-proof elements are strategically installed between moving parts, employing sheet labyrinth rubber guards that protect guide rails, ensuring an interior free of dust and moisture.

1. Grinding Head Innovation
The manual grinding head, enhanced with a rapid lifting mechanism and a built-in motor, delivers impressive rigidity and precision.
2. Effortless Electromagnetic Chuck
Streamlined operation saves significant time, with a remarkable endurance of over 20 continuous hours.
3. Precision Metal Hand Wheel
Our high-precision metal feed handwheel offers effortless control, achieving grinding precision at an impeccable 0.002MM.
4. Dual V Guide Rail Mastery
Leveraging a longitudinal Double V guide rail and a lateral Single V flat guide rail, combined with hydraulic drive, ensures unrivaled precision.
5. Resilient Resin Sand Cast Iron Body
With exceptional stability and strength, our castings undergo artificial aging to ensure immaculate dimensional accuracy post-finishing.
Precision Grinding Machine Reliable Surface Grinder Machine for Metal Fabrication

Model			2550AH/AHR
Table size		mm	500*250
X axis travel		mm	540
Y axis travel		mm	270
Table side way			Slide way
Max distance from spindle center to working table		mm	510
Auto crossward feed			-
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Auto vertical feed			-
Vertical rapid moving feed			-
Vertical feed of hand wheel		1 Rev	2
		1 Div	0.01
Rotation speed	50HZ	rpm	2800
	60HZ	rpm	3360
Grinding wheel size			Φ200×(6-20)×31.75
Spindle motor			2*2
Hydraulic motor			1*4
Crossward driven motor			0.2*4
Vertical driven motor			0.1*4
Coolant pump motor			0.12*4
Dust-clean motor			-
Dimension (L*W*H)		mm	1880*1500*1800
Net weight		kg	1500

Shenzhen Joint Machinery Co., Ltd. stands as a premier manufacturer and exporter of cutting-edge CNC machines including lathe machines, deep hole drilling machines, Swiss-type automatic lathes, milling, and grinding machines. Our commitment to excellence drives us to offer superior machines and unmatched service to our global clientele. We vigilantly manage and enhance machine quality to meet and exceed the highest industry benchmarks. Our products blend core technological prowess from Taiwan and Germany with state-of-the-art production methodologies, ensuring top-tier quality and reliability. Renowned for precision, stability, and reliability, our machines adeptly handle complex and demanding machining tasks. Gaining global acclaim, our products penetrate markets in Asia, Europe, South, and North America. We have forged enduring partnerships across continents, delivering substantial business value and achieving shared success with our esteemed customers.

---
