Product Description

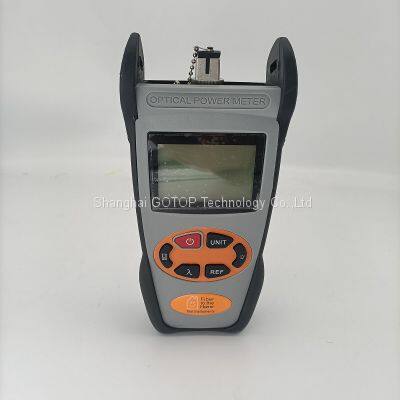

OPM-300 is a full-function optical power meter,it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the OPM-300 has more great functions/features of automatic wavelength identification and switching, as well as intelligent backlight control. Also this type has features of good appearance, good touch feeling and considerate humanization design.
Features
l Wave ID—Automatic wavelength identification and switching
(when used with -OLS310 A handheld light source);
l Frequency ID/Tone detection---Automatic frequency identification;
l Data storage function, up to 1000 test records;
l USB communication port to download the saved testing records;
l Reference power level can be set up and stored;
l Auto-off function can be activated or deactivated;
l AA alkaline and AC adapter for power supply;
l Low battery indication.
Specifications
Type
| OPM-300-A
| OPM-300-C
|
Calibrated（nm）
| 850,1300,1310,1490,1550,1625nm
|
Detector type
| InGaAs
|
Measurement Range（dBm）
| -70～+6
| -50～+26
|
Detector Area
| Ø 1.0mm
|
Uncertainty (dB)
| ±0.15（3.5%）
|
linearity (dB)
| ±0.02
|
Display resolution(dB)
| 0.01
|
Frequency ID（Hz）
| 270，330，1K，2K
|
Wave ID（nm）
| 1310，1490，1550，1625, 850,1300
|
Date storage capacity
| 1000
|
Communication Port
| USB
|
Optical Connector type
| FC,SC,ST interchangeable
|
Alkaline battery
| 3XAA，1.5V
|
Power Supply Adaptor(V)
| 8.4
|
Battery Operating time (h)
| 200
|
Operation Temperature(℃)
| -10～+60
|
Storage Temperature(℃)
| -25～+70
|
Outline size（mm）
| 200 X90 X50
|
Weight（g）
| 285
|
>>
