Stainless Steel Sink Edge Grinding Machine Gm-60

Product Description

1. General Description
This Equipment is specially designed for Grinding the edge of Stainless Steel Sink after seam welding. When it work, the workpiece turn around by the even speed, and the polishing strip will seam welding track automatically until it is finished completely, by this way the workpice will be polished equably and beautifully, you cannot find the seam welding track clearly.

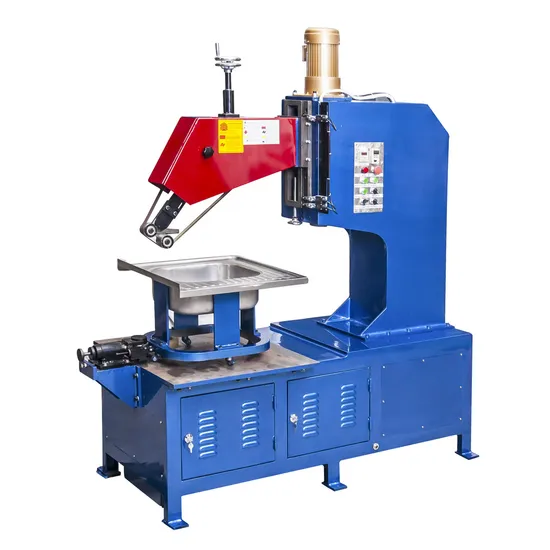

2. Sketch and Photo of the Machine as the photo.
3. Machine Working Process and Step
Load the Workpiece to the Fixing Jig of Working Table Start the Machine The Grinding Strip and Sink Workpiece Start to Go Round and Round, Up and Down Polishing Until Finish Automatic Back to the Original PositionUnload the Workpiece.
4. Main Parts List of the Machine
4.1 Air Cylinder and Pressure System;
4.2 Beeline Track;
4.3 Motor Power System;
4.4 Grinding Strip;
4.5 Special Design Fixing Jig and Table;
4.6 Main Body of Machine;
4.7 Electric Controlling Box;
4.8 Machinery Movement System;
5. Main Technical Parameter of Standard Model Machine
5.1 Machine Dimension: L: 2400mm× W: 100mm× H: 2200mm(Or designed specially basing on the sink workpiece);
5.2 Polishing Length and Width: 1300mm× 600mm(Or designed specially basing on the sink workpiece);
5.3 Total Power: 60KW;

---
