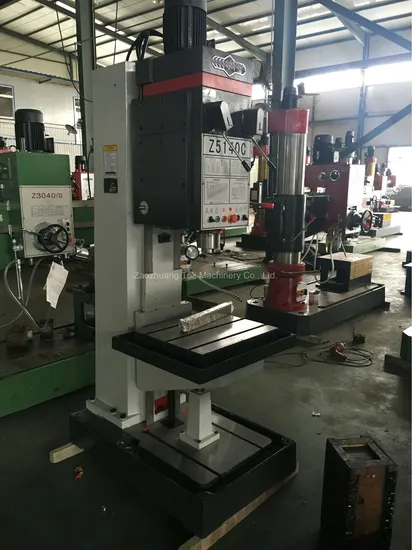

Square Box Drilling Press Z5140b

US$4,100.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5140B
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Diameter
40mm
Spindle Taper
Mt4
Spindle Box Travel(Manual)
200 mm
Spindle Speed Steps
12
Spindle Speed Range
31.5~1400 Rpm
Table Size
560 X 480 mm
Vertical Travel
300mm
Main Motor Power
3kw
Spindle Travel
250 mm
Function
Self Screwing Device
Transport Package
1090X905X2465 mm
Specification
1250kg
Trademark
tokmc
Origin
Shandong
HS Code
84592900
Production Capacity
100 Sets/ Years

Product Description

steel drilling machine / universal drilling machine /self drilling screw machine Square column vertical drilling machine witha versatile application Tap-automatical recersing device Manual lift table Cross table used in Z5140B-1 Z5150B-1
Specification Unit Z5140B Z5140B-1
Max drilling diameter mm 40 40
Spindle taper MT4 MT4
Spindle travel mm 250 250
Spindle box travel(manual) mm 200 200
Spindle speed steps 12 12
Spindle feed steps 9 9
Spindle speed range r.p.m 31.5~1400 31.5~1400
Table size spindle feed range mm/r 0.056~1.80 0.056~1.80
Table size mm 560 x 480 800 x 320
Longitudinal(cross)travel mm - 450/300
Vertical travel mm 300 300
Max distance between spindle and table mm 750 750
Main motor power kw 3 3
Overall size mm 1090x905x2465 1300x1200x2465
Net weight kg 1250 1370
