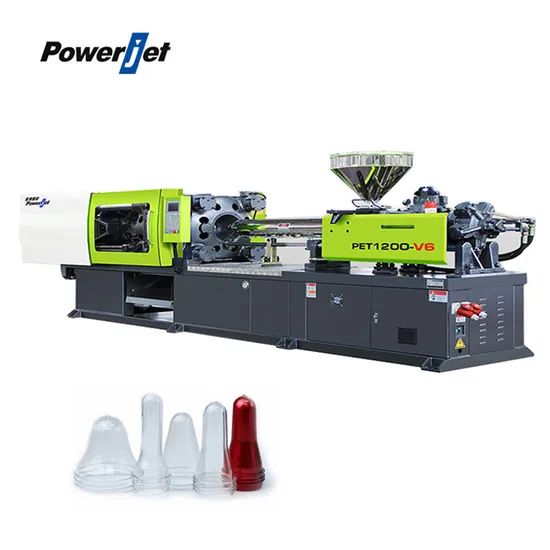

Powerjet Full Automatic 200 Ton 48 Cavity Plastic Water Juice Bottle Pet Preform Making Small Injection Molding Machine Manufacturers

Product Description

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.
Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform
FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g
Machine Details
Product Parameters

	DESCRIPTION	UNIT	PET1200-V6/S6
CLAMPING UNIT	Clamping force	KN	2000
	Opening stroke	mm	490
	Max.datlight	mm	1040
	Platen size	mm	510*510
	Space between bars	mm	775*755
	Max.mold height	mm	550
	Min.mold height	mm	230
	Ejector stroke	mm	160
	Ejector force	KN	99
INJECTION UNIT	Screw diameter	mm	67
	Shot volume	cm3	685
	Screw stroke	mm	270
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	22
	Heater power	KW	16.5

---
