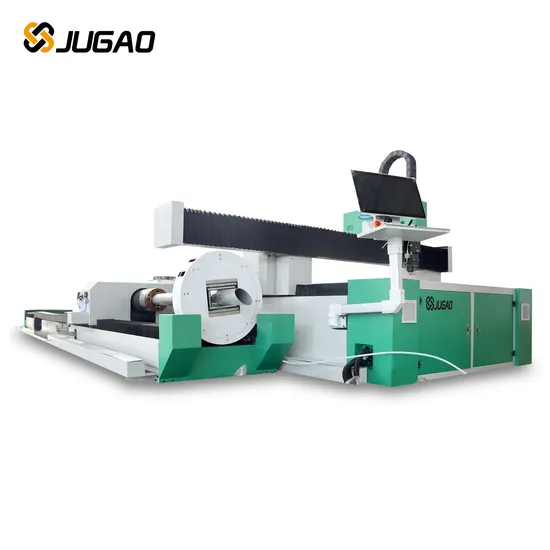

1000W-3kw Carbon Metal Fiber Laser Cutting Machine Plate Tube Stainless Steel Sheet Cypcut Control System Ai Graphic Format

Product Description

1000W-3KW Carbon Metal Fiber Laser Cutting Machine Plate Tube Stainless Steel Sheet Cypcut Control System AI Graphic Format This series of products is the preferred model in the metal material processing industry, with powerful cutting capabilities, "flying" cutting speed, ultra-high stability, high-quality processing, extremely low operating costs and ultra-high adaptability.It integrates flat plate cutting and pipe cutting. It can be used to cut ordinary metal plates and various common pipes such as round pipes, square pipes, angle irons, etc. It is a multi-functional integrated equipment.It adopts a gantry dual-drive structure, which has the characteristics of stable structure, good rigidity and high speed. Its X and Y single-axis positioning speed can reach more than 80m/min. At the same time, the dual-drive acceleration makes the maximum acceleration of X and Y single axes reach 1G.The bed is an integral welded structure, which has been subjected to multiple aging treatments and has the advantage of good dynamic response. In terms of transmission, it is equipped with high-precision linear guides, high-precision reducers and gear integrated parts, grinding racks and other high-precision and efficient transmission mechanisms, with good rigidity and high precision to ensure long-term high-precision operation of the equipment.It adopts independently developed fiber laser, has extremely strong cutting ability and efficiency, and is a high-end and high-tech fiber laser cutting machine that integrates advanced technologies such as laser cutting, precision machinery, and CNC technology.
Technical parameter

Mode No	JY-3015A/P30	JY-4020A/P60	JY-3015C/P30	JY-4020C/P60
Laser Power	500W-2000W	500W-2000W	700W-3000W	700W-3000W
Working Pange	3000mmx1500mm 20-150mmx3000mm 20*20 100*100mmx3000mm	4000mmx2000mm 20-150mmx6000mm 20*20 100*100mmx6000mm	3000mmx1500mm 20-150mmx3000mm	4000mmx2000mm 20-150mmx6000mm 20*20 100*100mmx6000mm
			20*20 100*100mmx3000mm
Y1 Axis track	3050mm	4050mm	3050mm	4050mm
Y2 Axis track	3200mm	6200mm	3200mm	6200mm
XAxis track	2825mm	3325mm	2825mm	3325mm
W Axis track	Infinite rotation	Infinite rotation	Infinite rotation	Infinite rotation
Z Axis track	270mm	270mm	270mm	270mm
Y Axis accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Y Axis max. acceleration	0.8G	0.8G	1.2G	1.2G
Y Axis max.Speed	80m/min	80m/min	100m/min	100m/min
Max.load of worktable	0.8T	1T	0.8T	1T
Max.load ofpipe worktable	0.1T	0.2T	0.1T	0.2T
Net Weight	5.3T	7.5T	7T	10T
Dimension(LxWxH)	5000mmx3700mm x1600mm	9000mmx4200mm x1600mm	8300mmx3700mm x1600mm	10300mmx4200mm x1600mm
