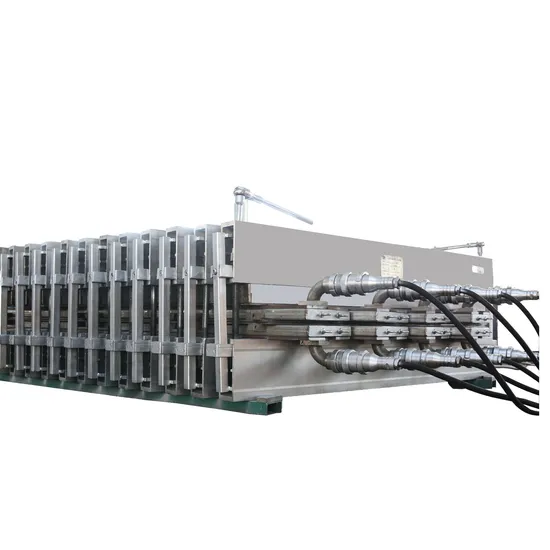

Portable Rubber Conveyor Belt Splice Platen Vulcanizing Press Machine

Product Description

CONVEYOR BELT VULCANIZING MACHINE Used for the heating vulcanization of joint connection and reparation of fabric ply conveyor belt, steel cord conveyor belt, PVC PVG solid woven fire-resistant conveyor belts. Consists of aluminum beam, heating plate, water bag, electric cabinet and other auxiliary tools. Technical Parameters:
1. Vulcanization pressure: 1.0 to 2.0 Mpa;
2. Vulcanization temperature: 145 °C ;
3. Difference in surface temperature of vulcanized plate: ± 3 degree;
4. water cooling system (less than 10 mins to cool from 145°C to normal temperature) or natural cooling system (more than 2 hours
to cool down)
5. electric pump or hand pump; if choose electric pump, please advise voltage, such as 380V 50HZ 3 Phases;
6. Output power of Electronic Control Cabinet ≤36 KW (Different model different power);
7. Temperature adjustment range: 0 to 200° ;
8. Timing adjustment range: 0 to 99 min;
9. After the pressurization of 0.8 MPa, the gap between upper and lower heating plate is not more than 0.4 mm

SPECIFICATION
Suitable for conveyor width:	680mm-2200mm
Heating plate length:	600mm,900mm and others
Cementing angle:	0°:16.7°
Curing pressure:	8Bar-12Bar
Cooling way:	strong refrigeration/ Natural cold
Application of conveyor belt thickness:	≤40mm

---
