One-Time Operation Sunfield Output 800-1000kg/H Combined Rice Milling Machine

Product Description

One-Time Operation Sunfield Output 800-1000kg/H Combined Rice Milling Machine
Strong Pre-cleaning Type
Double-layer Drum Cleaning, Destoning, Husking, Separating, Whitening, Grading
by ONE-TIME operation

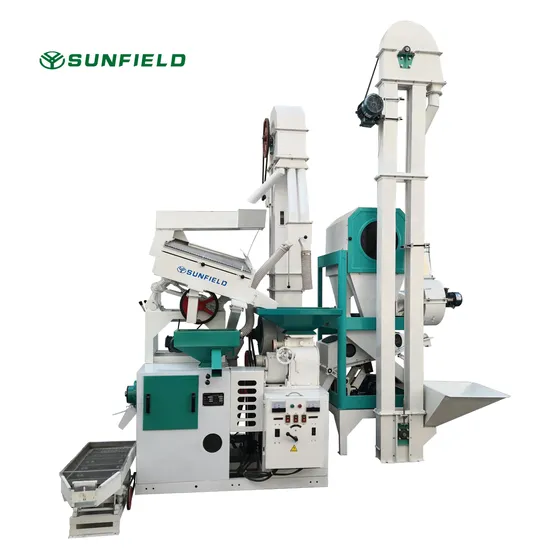

1. Product Introduction CTNM20 Complete Set Combined Rice Mill combined with TZQY54 drum paddy cleaner and QSX45 de-stoner, 8'' rubber roller husker, gravity paddy separator, large volume inhale-air emery roller rice mill, rice grader, conveyors. Revolutionally equipped with drum type cleaning machine which engifted very strong cleaning efficiency, great brown rice separating and rice whitening performance, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level; with direct optional brown rice outlet, provides users with a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc, to improve the milling performance or extending its functions.

1	Feeding Hopper	2	Single Elevator
3	TZQY54 Drum Type Paddy Cleaner	4	QSX45 Destoner
5	Double Elevator	6	MLGT20 8" Rubber Roller Husker
7	MGCZ70×6 Gravity Paddy Separator	8	15 Large Volume Inhale-air Emery Roller Rice Mill
9	Rice Grader	10	Electric Control Box

2. Product Features Unibody base designed for convenient transportation and installation, stable operation, low space occupation. High efficiency double-layer drum type cleaning sieve, strong precleaning performance. It improves production efficiency by the unique rehulling leftover paddy design. Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality. Smooth processing flow, easy operation for just one person. Independent safe electric control system for more convenient operation. Improved transmission system extends duration of consumption parts Modula design, reserves connectivity with follow up equipments to double mill, grade and sorte for better rice quality. Low investment and high yield 3. Core competitiveness

Unique DRUM TYPE Combined Paddy Cleaner and De-stoner
♦ Independent structures for paddy cleaning and de-stoning, greatly improved the performance from traditional unibody design;
♦ The double-layer drum type sieve mechanism with high cleaning efficiency;
♦ Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
♦ Solid shock absorption bearing strengthened the main machine by high stablility, low vibration, low noise and less dust while working.
High efficiency, low noise husker
♦Double support mobile gearbox husker integrated reversing gearbox and mobile tightening device, efficiently avoided miscoordination between swinging gears.
♦Over 90% de-hulling rate for one time operation.
♦Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.

Innovated inhale-air emery rice mill
♦Emery rice mill equipped with a large diameter hollow spindle and innovative Emery roller whitening mechanism design.
♦Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.
♦Lower operation platform, more convenient operation and daily maintenance.
Stable gravity paddy separator
♦Bigger screen with high separation speed and even paddy distribution.
♦The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
♦Low left paddy for rehusking, reduce the broken rate efficiently.

4. Main configuration and technical parameters

Model&Spec.	CTNM20A	CTNM20B	CTNM20C
Output(kg/h)	800-1000	800-1000	800-1000
Rice milling rate (%)	68-72%	68-72%	68-72%
Cleaner and de-stoner	TZQY54/QSX45	TZQY54/QSX45	TZQY54/QSX45
Husker	MLGT20	MLGT20	MLGT20
Paddy separator	MGCZ70×6	MGCZ70×6	MGCZ70×6
Rice mill	NF15A(1pc)	NF15A(1pc)	NF15A(1pc)
Rice grader	Basic rice grader	MJP50×2	MJP50×2
Rice polisher	/	/	MPGT12.5
Single elevator	DTG19/8-1pc	DTG19/8-2pcs	DTG19/8-3pcs
Double elevator	DTG19/8-8	DTG19/8-8	DTG19/8-8
Power(kw)	25.32	26.62	49.87
Overall dimension(mm)	3300×1200×3400	3800×1200×3400	5000×1200×3400

5. Contact us
Diana Duan
Overseas Dept.
Hunan Sunfield Machinery Co.Ltd
Address:Hexiang Science and Technology Park, No.98, Lixiang Road, Changsha Economic & Technical Development Zone, Changsha, Hunan, China

---
