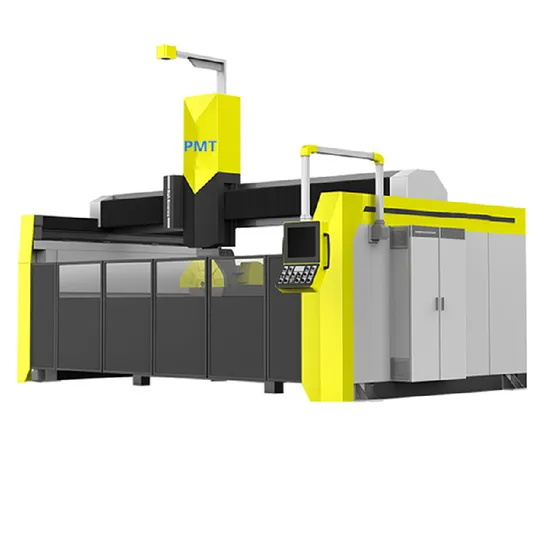

CNC 5axis Bridge Saw Cutting Machine for with Sucker for Marble Stone Cercle Profiling Cutting

Product Description

Application
4 Axis bridge saw machine 5 Axis CNC Stone Cutting Machine cnc450-4axis bridge saw and cnc600-5axis bridge saw machine is a bridge type multifuction cnc machine for stone cutting and milling. It's easy for this cnc stone machine to process all kind of stone kitchen coutertop, bathroom countertop, shower trays, tombstone, window frames, 3D decorative wall and other products in general for furniture and building .
Functions:
* Slab cutting,chamfering0°-360° at any angle.
* Drilling, milling, recess machining.
* Block profiling, engraving.
* Photographing to positioning the workpiece for correct cutting.
* Worktable tilt 0-85°for easy slab feeding.
key words:cnc bridge saw,4axis bridge cutting machine, 5axis stone cutting machine,4axis bridge saw,5 axis bridge saw machine,mabrle bridge saw machine.cnc bridge saw.
Our cnc bridge saw is a 4axis and 5axis bridge cnc saw machine for granite kitchentop & countertop fabricator, stable electric system.
1) 5 axis linkage control with Italian CNC Esa system.2) Easy to use interface with 19" color touch-screen.3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.5) Working platform can tilt 85 degrees, easy for slabs loading.6) Manual cuts available for simple machining.7) Photo slab for nesting and avoiding defects.8) Nesting manual / automatic to optimize slab surface usage9) RTCP tool point tracking function ensure precision machining easy.10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
Technical Parameter


Product Description

Parameter	Unit	CNC450-4AXIS	CNC600-5AXIS
Blade diameter	mm	300-450	350-600
Max processing size	mm	3200*2000*120	3200*2000*180
Dimension of worktable	mm	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°
C Axis	°	0-360°	0-360°
A axis		0/45°	0-90°
Main motor	kw	15	18.5
Gross motor	kw	21	24
Water consumption	m³/h	4	4
Outline dimension	mm	6000*4800*2900	6000*4800*3100
Gross weight6		5500	6500

Packaging & Shipping

Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.If you have any problem,just conact our sales department,customer service department,etc at any time.

---
