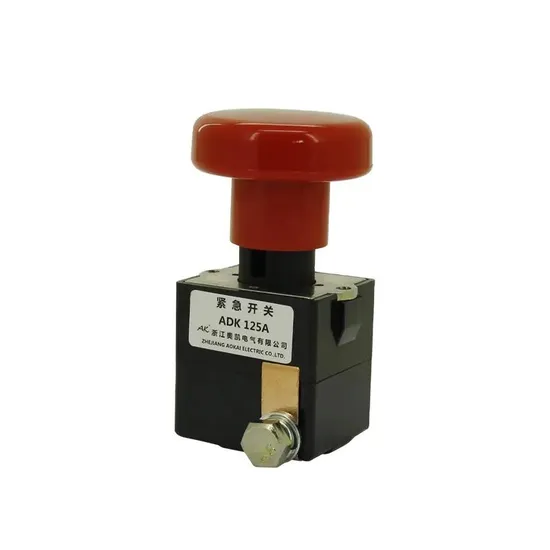

Adk125A Push Button Lockout Emergency Stop Switch for Electric Wheelchair

US$15.00
5-99 pieces
US$14.00
100-499 pieces
US$13.00
500+ pieces

Basic Info.

Model NO.
ADK125A
Wiring
Single Live Line
Principle
Resistive
Application
Industrial, Battery Powered Vehicles
Type
Normal Close
Number of Switch
Single Control Switch
Structure
Power Built-in Type
Usage
Disconnector
Kind
Single-pole on-off Switch
Contact Type
Type c Contact
Detection Method
Correlation Type
Brand
Aokai
Certification
ISO9001, CE, CCC
Protection Level
IP50
Quality Standard
ISO9001
LED
No
Dimension
55.7*43.5*110mm
Protection Grade
IP50
Contact Form
1nc
Similar Model
ED125
Weight
320g
IP Level
IP53
Switch Combination
1nc
Max. Voltage
80V
Whether The Smart
No
Contact Material
Agcdo/Agcuo
Frequency
50/60Hz
Temperature Range
-25ºC~+55ºC
Transport Package
Carton / Pallet
Trademark
Aokai
Origin
Zhejiang, China

Product Description


AED125A Push Button Lockout Emergency Stop Switch For Electric Wheelchair
Brand: AK/AOKAI
Name: Emergency Switch
Model: AED125A/ED125
Rated Voltage: ≤80V
Rated Current: 125A
Type: Push Button
Dimension: 55.7*43.5*110(mm)
Weight: About 320g

Emergency switches are applicable for various electric motor vehicles and other electric power devices. They are safe,convenient and easy for operation.
1. SPECIFICATIONS
Rated Voltage ≤80V
Contact Circuit Rated Load Current(A) 125A
Typical Voltage Drop Across Contacts per 100A ≤80mV
Insulation Resistance 50MΩ
Electric Strength to Resist 50Hz/60Hz 1000VAC/1min
Overload Current ≤7Ie, ≤1s
Electric Life ≥10000 times
Mechanical Life 50,000 times
Work Specification Continuous
Contact Form 1NC
Contact Material AgCdO/AgCuO
Technical Specification GB14048.3-2010

2. USAGE ENVIRONMENT
Altitude ≤2Km Amblent temperature -25~+55
International protection IP50 Installation type III
Way to install Any Vibration 2.5g(5~50)Hz
Impact 50g,11ms (Half-sine wave)

3. SCHEMATIC DIAGRAM
4. INSTALLATION DIAGRAM

5. HOT SALE PRODUCTS
6. PACKAGE AND DELIVERY
