Semi automatic and high speed pet bottle making machine blow moulding machine blowing machine

Product Description

Product Description
Semi automatic and high speed pet bottle making machine blow moulding machine blowing machine
Product Description
Specifications:
GD-880-II Semi-automatic water bottle blowing machine
CE approval
Speed: 1500pcs/h for 500ml pet bottle
Volume:220-2000mL
Brief introduction of water bottle blow moulding machine:
1.Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.
2.Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.
3.The preform will be heated evenly, not be influenced by outside environment.
4. Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
5.The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.
6.Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide
stable high pressure for blowing different shapes of big capacity bottles.
7.The system is equipped with silencer, connecting rod and articulated refueling devices.
8.Two modes of operation: semi-automatic mode and automatic mode.
9.Small size, low investment. one person enough to operate, simple and safe.

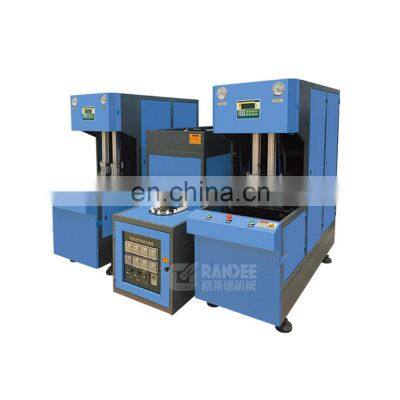

Machine show
Bottle Preform Preheating datas setup interface
Heater
2 cavity mould
Blowed bottles:
Main technical parameter:

Type	Item	Unit	GD-880-II semi automatic blow moulding machine
Container	Product material	/	PET
	Number of cavities	L	2 cavity
	Theoretic output	BPH	1500BPH
	Max bottle height	mm	450
	Max bottle diameter	mm	35-220
Molding	Clamping force	T	20
	Clamping stoke	mm	230
	Max stretching stroke	mm	380
	Max mould thickness	mm	380
Auxiliary system	High air compressor		1.2m3/30KG
	Air dryer		1.0m3/30KG
	Air filter		2.0m3/30KG
Main machine electricity	Voltage standard	V/Hz	380v/3PH/50Hz or special order
	Total power	KW	10
Machine size and weight	Machine weight	T	1
	Blow molding machine dimension	cm	148*60*213
	Perform oven	cm	137*61*134

Our engineer make 2D bottle drawing
Related products:
Bottle preform
Water filling machine
Company Information
Project cases
Our exhibition
Workshop deatils
Our team
Our Services
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

---
