Customized Heavy Industry Double Drum Building Material Electric Winch 20 Ton

US$2,100.00

1-4 Sets

US$1,800.00

5+ Sets

Basic Info.

Model NO.

Winch

Type

Electric Winch

Driven Type

Customized

Speed

Customized

Carrying Capacity

Customized

Tonnage

Customized

Reel Number

Customized

Running Mode

Customized

Feature

Antiseptic, Insulating, Explosion-Proof

Certification

CE, ISO 9001

Standard

National Standards

Load Capacity(T)

Customized

Table Size(mm)

5000′ 2500′ 700

Speed(M/Min)

Wheel Tread(mm)

2800

Wheel Diameter(mm)

500

Structure

Crane Box and Girder

Motor Power(Kw)

5.5

Max. Wheel Pressure(T)

16.9

Certificate

ISO90001, SGS, CE

Transport Package

According to Customers′ Demands.

Specification

winch

Trademark

BEFANBY

Origin

Xinxiang

HS Code

8428909090

Production Capacity

60 Sets/Month

Packaging & Delivery

Package Size

130.00cm * 60.00cm * 35.00cm

Package Gross Weight

100.000kg

Product Description

Product Description

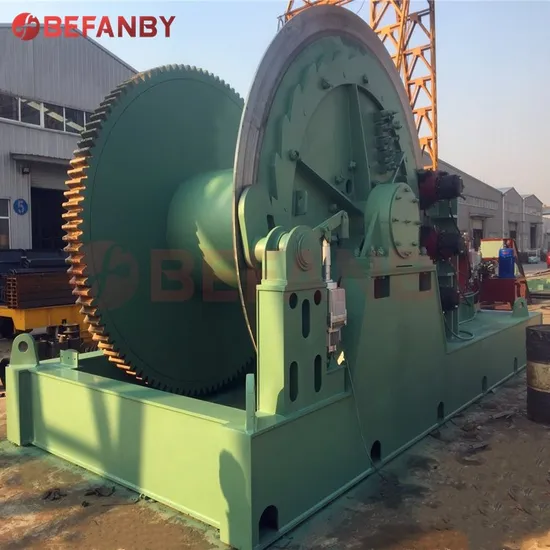

Customized Heavy Industry Double Drum Building Material Electric Winch 20 Ton
Winch machine is a light and small lifting device that uses a reel to wind a wire rope or chain to lift or pull heavy objects.Winch can be used independently, or as components in lifting, road building and mine lifting machinery. Mainly used in construction, water conservancy projects,forestry, mining, wharf, etc. Winch system mainly includes: the main cylinder assembly,winch frame and cover assembly, Angle gearbox assembly, rotary actuator, the drum brake system, the main brake cooling circulatory system, water brakes, brake shield water cycle system, winch power input and output, crown touch device, etc. The parts of the drill and repair machine winch are set on the pry seat of the power winch.
Details Images
Product Parameters

Model	Rated Pull Forece(kn)	Rope Speed (m/min)	Rope Capacity(m)	Wire Rope Dia.(mm)	Motor Power(Kw)	Size(LWH)	Weight(Kg)
JK0.5	5	22	110	φ7.5	3	710690490	200
JK1	10	22	80	φ9.3	4	710610410	300
JK1.6	16	24	115	φ12.5	5.5	940900570	500
JK2	20	24	110	φ13	7.5	940900570	550
JK3.2	32	30	250	φ15.5	15	16401430820	1150
JK5	50	30	240	φ30	30	190017901100	2500
JK8	80	30	210	φ45	45	198017901100	3500
JK10	100	30	300	φ55	55	225025001300	5100
