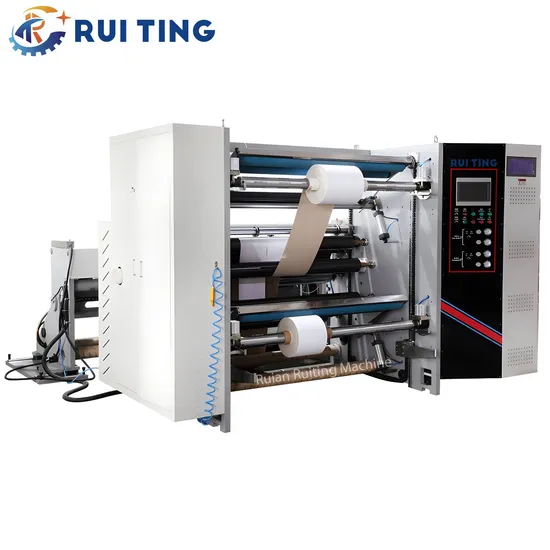

Rtfq-1200b Adhesive Stikcer Paper Label Machinery Slitter Rewinder

Product Description

Product Description RTFQ-1200B adhesive stikcer paper label machinery slitter rewinder is complete equipment for auto label printing press
and die cutting machine.
This machine is suitable for slitting adhesive paper, craft paper, web paper, PVC plastic film, insulated material.
This machine is good for slitting narrow web paper.
It has frequency converting, automatic meter counting, auto stop when length settled, alarm, unwinding has web guide by photoelectric eye,
rewinding through air shaft, unwinding and rewinding adopt automatically calculate tension conical control,
The whole machine has compact structure, synchronous belt traction, features with high speed,
precision cut, low noise, easy operation, stable running etc.
Detailed Photos Product Parameters

Max web width	1200mm
Max unwinding diameter	1400mm
Max. rewinding diameter	1000mm
Min slitting width	30mm
Power Supplier	AC380V, 3 phase
Cutting precision	0.2mm
Cutting speed	10-350m/min
Overall dimensions(L*W*H)	3.5m*3.1m*1.9m
Machine weight	3200kg

Certifications
Packaging & Shipping Installation Instructions Installation and Adjusting: If required, the seller will dispatch the technician to your country for installation, commissioning, adjusting the machine and training the workers at your plant.However the buyer should take on all costs required during our technician's stay in the buyer's country, including visa procedure, round airplane tickets, accommodation, and food and out of pocket expenses. After-sale service -The warranty time is one year. Within Warranty period, if under the usage of instruction sheet,any product broken or damage, we will offer the repair service for free or replace for free. But the buyer should take on all costs required during our technician's stay in the buyer's country, including visa procedure, round airplane tickets, accommodation, and food and out of pocket expenses.

Company Profile Ruian ruiting machinery co.,ltd. is a professional supplier of printing press equipment and post-press equipment.
Specializing in the production of flexographic printing machines,die-cutting machines,Cutting machine and
other automatic equipment and a series of supporting services,and strive to make the industry's production quality
and service reputation of the best enterprises!

After Sales Service

---
