Advanced Medical Vacuum Pump System for Hospital Use

Product Description

Product Description Medical vacuum systems are designed to supply medical vacuum to medical gas pipeline systems in medical facilities. The medical vacuum system is equipped with 2 to 4 vacuum pumps. The vacuum pump is available in both oil-lubricated and oil-free type. Each pump includes oil level sight glass,check valve. System are manufactory in ISO9001 system to ensure high quality. System are available in two configuration types: Vertical tank and horizontal tank mount.
The medical vacuum system is equipped with an LCD control cabinet to control the vacuum pump.

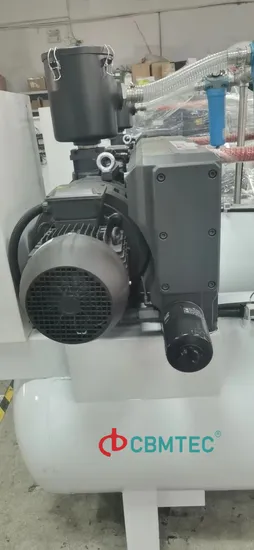

The system is equipped with double bacteria filter to ensure the purity of the gas entering the vacuum tank. The Medical Vacuum system and its component parts undergo a complete electric and pneumatic test prior to shipment.The oil-lubricated rotary vane vacuum pump is a durable long-life pump that has been used for many years in hospital and laboratory applications. Lubricated by circulating oil provides a consistently high vacuum level in continuous operation. The use of oil facilitates higher efficiency of the pump, lower operating temperatures and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications. PRODUCT DETAIL
Specifications
* PLC control panel* Application: Medical or Laboratory* Technology: rotary vane* Available in Simplex, Duplex, Triplex or Quad* Different capacity receiver tank available* Minimal maintenance, Maximum Durability* Include LCD digital display to show vacuum information* Completely tested before to shipment
Product Parameters Oilless Type

Model number	Single unit flow (m3/H)	Single-unit power (kw)	System flow (m3/H)	Overall dimension (L*W*H)mm	Weight (kg)
GVN1.5II	60	1.5	120	1820*850*1300	270
GVN2.2II	100	2.2	200	1820*850*1300	310
GVN3.0II	150	3	300	1820*850*1300	360
GVN4.0II	211	4	422	1600*1200*1850	450
GVN5.5II	300	5	600	1600*1350*1850	490
GVN1.5III	60	1.5	180	2400*1200*1850	330
GVN2.2III	100	2.2	300	2400*1200*1850	390
GVN3.0III	150	3	450	2400*1200*1850	460
GVN4.0III	211	4	633	2400*1350*1850	530
GVN5.5III	300	5	900	2400*1350*1850	610

Oil-lubricated Rotary

Model number	Single unit flow (m3/H)	Single-unit power (kw)	System flow (m3/H)	Overall dimension (L*W*H)mm	Weight (kg)
GV1.5II	40	1.5	80	1820*850*1300	260
GV2.2II	63	2.2	126	1820*850*1300	295
GV3.0II	100	3	200	1820*850*1300	350
GV4.0II	160	4	320	1600*1200*1850	460
GV5.5II	200	5.5	400	1600*1350*1850	505
GV7.5II	300	7.5	600	1600*1350*1850	580
GV1.5III	40	1.5	120	2400*1200*1850	320
GV2.2III	63	2.2	189	2400*1200*1850	450
GV3.0III	100	3.7	300	2400*1350*1850	520
GV4.0III	160	4	480	2400*1350*1850	600
GV5.5III	200	5.5	600	2400*1350*1850	690
GV7.5III	300	7.5	900	2400*1350*1850	720

About Us
Ningbo CBMT Medical Equipment Co., Ltd (hereinafter referred to as "CBMT") is registered at Factory Add: No. 8, Huangninongan,Wuxiao, Kangting Village, Xiwu Street, Fenghua District, Ningbo City, Zhejiang Province. The company will adhere to the concept of quality first, superior service, and still be practical, pragmatic and enterprising, to develop new and far-reaching, bravely "step out" multi-channel multi-channel multi-level business cooperation! We will rely on years of experience in the medical industry and the broad prospects for the development of the industry to be specialized, refined and strong!
Exhibition
Services 1. Support customization based on your special request;2. OEM is available;3. Special LOGO printing is available;5. Shipping within 5-7 days after 100% payment , Fedex, DHL, TNT, EMS, UPS, Etc.
Anyway, should you have any intersts or some more info needed on our surgical lights & allied gas items (gas cylinder valves,gas regulators, medical hospital central oxygen system products), you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)Model number

---
