Hot Selling 12V 24V Isolated Solar Grid-Tied Inverter 1kw for Air Conditioning/Home/Car

Product Description

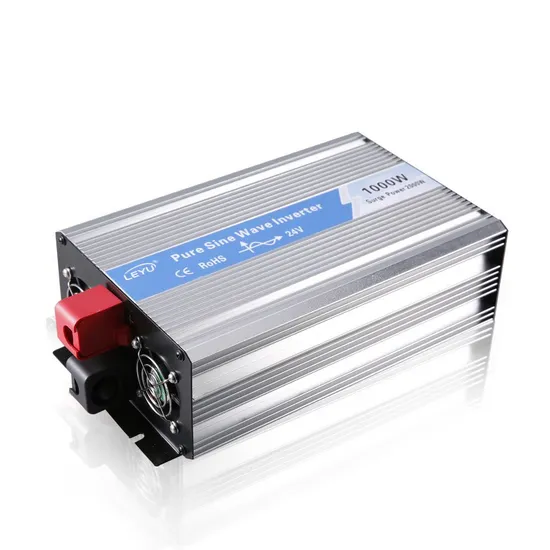

off Grid OPIP-1000 1000W Pure Sine Wave solar panel power Inverter
1000W Power inverter OPIP-1000 series Product Description
Features:
1.Pure sine wave output waveform
2.High transform efficiency ,fast start
3.Strong adaptability and stability
4.With automatic over-current and output short circuit protection to avoid damage the equipment
5.Temperature controlled fan,safe & efficient
6.Safe and reliable with built in fuse
7.Customizable input voltage such as 36V,72V,96V,110V etc. output voltage such as 120v, 130v, 200V,240v, etc; different kinds of sockets are available
Product Parameters

Model	OPIP-1000-1	OPIP-1000-1	OPIP-1000-1	OPIP-1000-2	OPIP-1000-2	OPIP-1000-2
Rated power	1000W
Peak power	2000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.8A	0.5A	0.3A	0.8A	0.5A	0.3A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	300x180x78mm
Packing(mm)	350x245x145mm
Net./gross weight(g)	2730/3230g
QTY/Ctn	5 Pcs
Meas./Ctn(mm)	500x405x425mm
Gross weight/Ctn(g)	16350g
Warranty	1 year
Configuration	Standard
Cooling method	Intelligent air cooling
