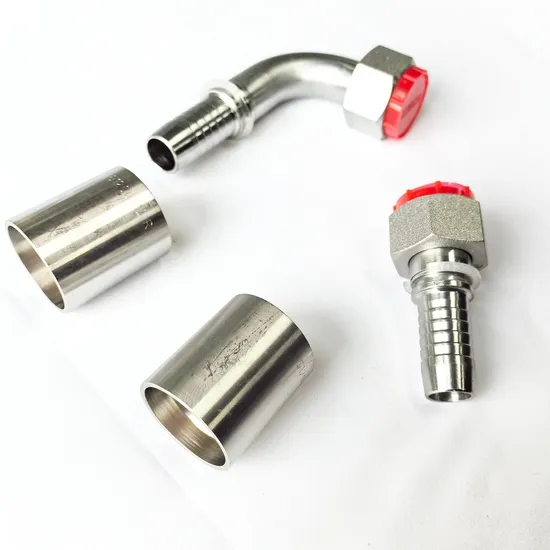

China Suppliers High Pressure Reusable Metric Male Female Stainless Steel Cone Jic Flange Adapter Grease Connector Pipe Nipple Hydraulic Hose Fittings

Product Description

Product Parameters JINTONGDA stocks quality hose fittings in a wide range of sizes to suit different sized hoses, ranging from 1/8″ to 2″, and are used to connect hose to components like cylinders, pipes, tubes, or different types of hoses in hydraulic systems.

Name	Hydraulic Hose Fittings
Main Material	Brass/Carbon Steel/Stainless steel/Aluminum/optional
Size	Equal or Reducing
Connection	Two different size Hose barb on both ends
Working Temperature	212 to 932 degrees F/-100 to 500 degrees centigrade
Standard	NPT/JIC/SAE/BSP/METRIC
Process	CNC Machineing, Forged, Casting
Maximum Pressure	3600 psi/25MPa
Application	Hydraulic hose and lines
Keyword	Hydraulic hose end fittings

THIGHT THREAD
Precision thread design, High installation fit, Not prone to aging
THIKENED JOINT
Professional equipment processing and shaping, with a smooth surface for easy maintenance.
SUPPORT CUSTOMIZATION
Excellent materials, with a variety of customization options available for consultation with customer service.
Connection Methods
Hydraulic hoses can be connected using two primary methods: crimped fittings and field attachable fittings.
1. Field Attachable Fittings (Reusable Fittings)1. Field Attachable Fittings (Reusable Fittings)
Design: Consist of a socket and nipple.
Installation: Can be assembled without the need for crimping equipment, making them suitable for on-site or emergency repairs.
Applications: Ideal for low to medium-pressure hydraulic systems.
Advantages:
Easy to assemble and disassemble.
Can be reused, reducing waste and cost.
Convenient for field repairs.
Disadvantages:
Less secure and reliable compared to crimped fittings.
Not recommended for high-pressure applications.
2. Crimped Fittings (Permanent Fittings)
Design: Permanently sealed to the hose using a crimping machine.
Installation: Requires a crimping machine, which comes in two main types:
Workshop Crimpers: Large, stationary machines for high-volume use in fixed locations.
Portable Crimpers: Compact and lightweight, designed for on-site use and highly popular for fieldwork.
2. Crimped Fittings (Permanent Fittings)
Advantages:
High sealing performance and long-term reliability.
Most widely used option in the fluid power industry.
Suitable for demanding environments and high-pressure systems.
Disadvantages:
Requires specialized equipment for installation.
Not reusable, increasing material costs. Warning: Hydraulic systems can work at high pressures, and fittings and adaptors can be subjected to extreme loadings such as vibration and uncontrolled pressure peaks. When choosing fittings or adaptors careful attention should be given to the technical specifications.
Hydraulic Fittings must be used with the properly specified hose. Using field-attachable hose fittings with hose other than those they are intended may result in hose failure and possible serious injury.
Product Range
We are manufacturing and marketing all kinds of hydraulic hose, fittings, ferrules, we can also produce according to customer's drawings or samples.

Ferrules	Metric thread hose fittings	British thread hose fittings
America thread hose fittings	Metric thread hose adapter	British thread hose adapter
America thread hose adapter	One piece hose fittings	Reusable hose fittings
SAE staple-lok fittings	Swaged metric fittings	Swaged british fittings
Swaged american fittings	Staplelok fittings	Metric adapters
British adapters	American adapters	Other adapters

Hydraulic Hose(Full range of DIN and SAE):
Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE 5
PTFE Hose, SAE R7, SAE R8
Industrial Hose:
Air hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Water hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Suction hose--Water suction hose, water discharge hose, oil suction hose, oil discharge hose.
Sand blast hose--High abrasion resistant tube.
Welding hose--Oxygen hose, Acetylene hose, Twin hose
Hose Protection:
Plastic Hose Guard
Silicone Fire Sleeve
Nylon Braided Sleeve
Hose Ferrule:
For SAE 100R1AT/EN 853 1SN,1ST, EN857 1SC Hose
For SAE 100R2AT/EN 853 2SN,1ST, EN857 2SC Hose
For SAE R9, R12, R13, DIN EN 4SP, 4SH
For SAE R7, R8, and kind of other hose
Hose Fittings:
1) Material: Carbon steel, Stainless steel
2) Finish: yellow Zinc plated, White Zinc Plated
3) Standards: SAE, JIC, BSP, NPT, DIN, etc

Exhibition Product Packaging
Certifications FAQQ1. Who is Juye Jintongda?A: We are a professional manufacturer of hydraulic hose and fitting with various specifications from 1999. We integrates the Research & Development, Production, Sales Export and focus on the high quality products all the time.
Q2. Please, do you have OEM service?A: Yes, we have OEM service.Q3. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings.Q4. What is your sample policy?A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
Q5. What is your terms of packing?A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.Q6. What is your payment term?A: T/T 30% in advance, and 70% before delivery or against copy of documents.Q7. What is your delivery term?A: EXW, FOB, CFR, CIF,etc.Q8. How about your delivery time?A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q9. Please,do you have quality certificate?A: Yes, we have ISO 9001, SGS, CE and related test report.Q10. How long can you guarantee the goods?
A: We guarantee the goods one year.Q11. Please, do you test all your goods before delivery? A: Yes of course, we have 100% burst pressure test and impulse tests before delivery.

---
