230 X 60 30-16mm Circular Saw Tct

Product Description

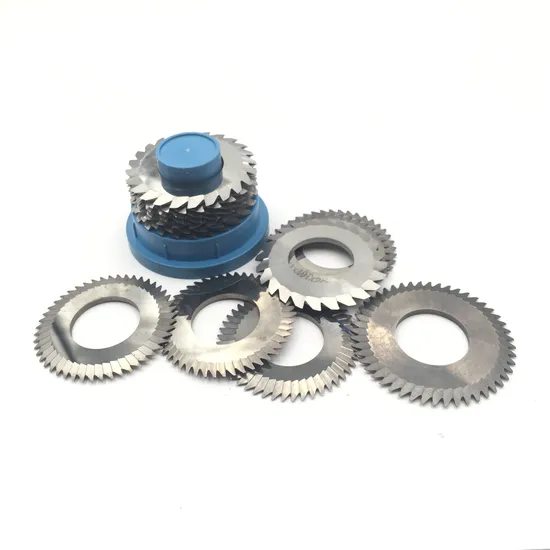

Cutting Tool Tungsten Carbide Saw Blades for Cutting Metal Applications:
It is suitable for scoring the surface of PCB, yielding a stabilized burr-free V-like groove(30°45°60°90°etc) and for cutting wood, metal, aluminum & plastic composites, MDF,non-ferrous metals, PVC, PCB, graphite, brass rod, cast iron, granite, marble and grass etc
Advantage: A high hardness, high corrosion resistance, high wear resistance, long service life and improve production efficiency. Precision machining, high surface finish, high processing V groove surface finish, no burr, greatly improved the quantity of products.

Dimensions of Tungsten Carbide Saw Blade

Inch	Diameter	Central hole	Segment thickness	Teeth
4"	105	20	1.8	30/40
7"	180	25.4	2.2	40/60/80
8"	200	25.4	2.6	40/60/80
9"	230	25.4	2.8	40/60/80
10"	250	30	3	40/60/80/100/120
12"	300	30	3.2	40/60/80/100/120
14"	350	30	3.4	60/80/100/120
16"	400	30	3.6	60/80/100/120

Grade Information

Grade	Density g/cm3	T.R.S MPa	Hardness HRA	Performance & Application recommended
YL10.2	14.50	3400	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG11C	14.40	2260	87.5	Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc.
YG6X	14.90	1560	91.0	Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron.
YS2T	14.45	2800	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG15	14.10	2400	86.5	Used for punch dies,stamping dies and wear resistance parts.

Company Informations
About Lihua Cemented Carbide

Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter:woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .

Monthly Capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Our Exhibitions & Qualifications
Shipping
We normally will dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us.
Below shows the estimate delivery time for different courier:
TNT: 10-14 working days
DHL: 7-10 working days
FedEx: 8 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working day
Payment ess than or equal to $1000: 100% advance via Paypal ,or Western Union Over $1000 : 30% T/T advance , Balance before shipment .
