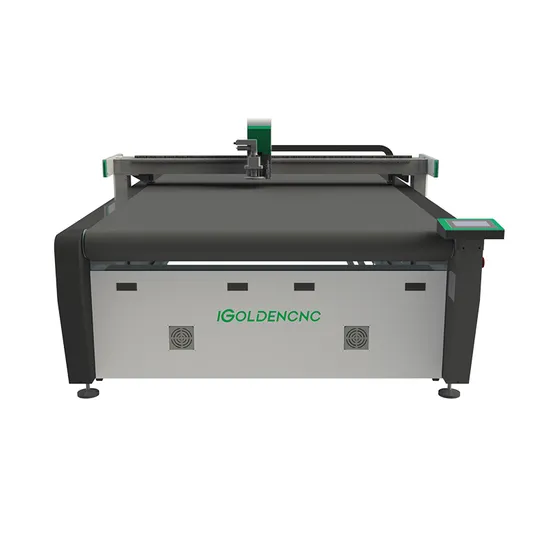

CNC Oscillating Knife Cutter is a type of CNC cutting machine which is used for high-precision cutting of heavier flexible and semi-rigid materials.
CNC oscillating knife cutting machine is carried on the multi-tool cutting head-Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife,Punch roller and Marking pen. CCD camera and Projector are optional for more precise cutting.
| Technical indicators | parameter |
| Model | iGK-1630(Size can be customized) |
| Working Size | 1600(W)*3000mm(L) |
| Dimensions | 3500*2200*1200mm(L*W*H) |
| Machine body | Welded high strength integrated bed |
| Platform | Aerospace aluminum vacuum adsorption platform |
| Platform adsorption material | 4mm felt |
| Tool | Vibrating knife |
| Cutting speed | 200-2600mm/s |
| Translatory velocity | 500-2800mm/s |
| Cutting thickness | 0.1-40mm(The actual materials shall prevail) |
| Cutting accuracy | 0.05mm(The actual materials shall prevail) |
| Operating system | Zhongrui |
| Vacuum pump | 9KW vacuum pump |
| Drive part | Taiwan straight square rail and rack |
| Miscellaneous function | Cross red light location |
| Motor drive | Full servo motor drive |
| Electric device | Chint/Omron |
| Voltage | AC220V/380V,50Hz |
| Optional tool | Round knife, punching knife, pneumatic knife, multi-layer knife, supporting knife, half cutter, oblique cutter, milling cutter, etc. |
