Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Transport Package
Wooden Box
Production Capacity
50000pieces/Year
Product Description
This machine is our company,'s best-selling model. It is smallflexible, easy to operate, and can work in a narrow field. It is also suitable for planting, trenching, fertilizing and weeding inorchards
Compared with the traditional 1 ton small excavator, it has many additional advantages

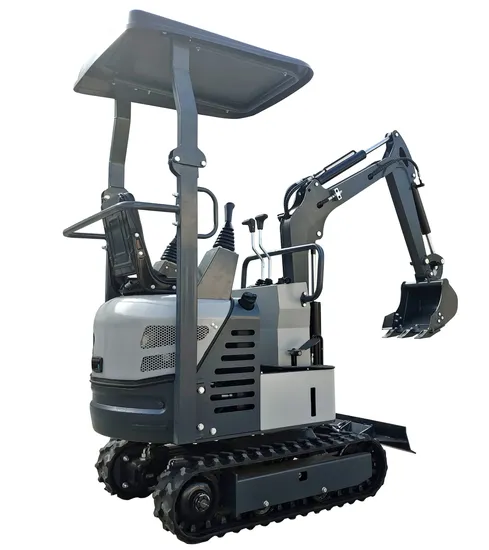

KA10 mini excavator
1. Thick counterweight, more stable
2. The heat dissipation system is added, and the heat dissipation is started with one button
3. The original 5-liter fuel tank was removed and replaced with an 11-liter fuel tank, which doubled the continuous working time
4. Use hydraulic tensioning device instead of screw tensioning
5. The hood is covered with high temperature heat insulation and sound insulation cotton, effectively reducing noise and shell heat
6. Concealed oil pipes, both internal and external oil pipes are wrapped with sheath, more effectively protecting the oil pipe from damage
KA10 MINI EXCAVATOR |
WEIGHT | 900KG | Engine brand | koop/B&S/Kubota |
SIZE | 2200mm*930mm*2250mm | Engine model | 192F/XR2100/D722 |
Max digging radius | 2900mm | Output power | 8.2kw/9.8kw/11.8kw |
Max digging depth | 1630mm | Walking speed | 0~1.8km/h |
Max digging height | 2750mm | Gradeability | 30% |
Max dumping height | 1960mm | | |
Min ground clearance | 385mm | | |
>>
