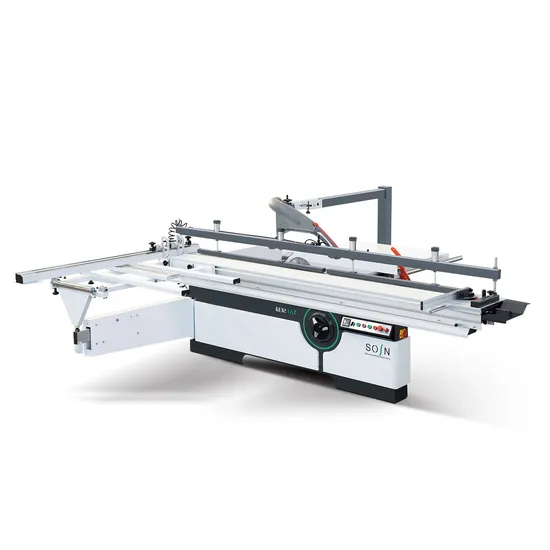

Woodworking Cutting Wood Saw Sliding Table Panel Saw Machine

Product Description

3200mm Woodworking Sliding Table Panel Saw Wooden Cutitng Saw Machine
SOSN has more than 20 years experience to make Woodworking Machine Sliding Table Panel Saw
Configuration:
-- 3200*410mm Altendorf sliding table
-- tilt 0-45 degree
-- electric up and down of main saw blade
-- digital display of main saw blade tilt degree
-- one set of saw blade.
-- wooden case package.
-- some easy broken parts( bearing/button/belt,etc).
-- common dust hood.
-- two years warranty.
Parameters

Model(eleteric control)	MJ6132TAZ
Sliding table size	3200*410mm
Gross cut capacity	3200mm
Width between saw blade&rip fence	1250mm
Saw blade diameter	300(250-400)mm
Height of cut (300mm)	90mm
Main saw spindle Speed	4500/6000rpm
Main spindle diameter	30mm
Tilting saw blade	0-45& 90degree
Motor Power	5.5kw
Scoring saw blade dia	120mm
Scoring saw blade speed	7000-8000rpm
Scoring saw diameter	20mm
Scoring motor	1.1kw
Weight	950kg
Machine body Package size	2200*1150*1100mm
Sliding table Pack size	3350*480*320mm

Standard Equipment 1. T-6 aircraft grade aluminum sliding table with 410mm width
2. Harvey unique "Compass" crosscut fence system
3. Independently driven main blade and scoring blade
4. Digital readouts for ripping width and blade angle
5. Heavy duty rip fence with micro-adjustment
6. Specially designed spindle arbor takes Dado blade
7. Transparent safety blade guard
8. User-friendly dual control panels
Features:
1.Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.
2.For saw spindle, every axis has been tested for perfect balance.
3.Perfect inner structure, to make sure the machine work precision, easy-operation.
4.Static spray paint technology for machine, never paint off,
5.Thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.
6.Fine micro adjustment,stable and precision.
7.Auto power off saw blade cover added the working safety
8.5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
9.European quality button
10.Aluminum extruded fence with large stopper
4).Details description:

	Steel bar sliding table,3200*410mm, with inner lock, more rigidity and strength, smooth movement.
	Perfect inner structure, linear guide way to make sure the machine work precision, easy-operation. 5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
	Big saw blade tilt degree is digital show, very convenient for operator, also with high precision. European quality button
	Thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.

Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?
Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.
Q: Can you promise to deliver the machine in time?
A: Yes, we can.
Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
If you have any doubts,please contact us freely!Welcome to ask price of Woodworking Machine Sliding Table Panel Saw

---
