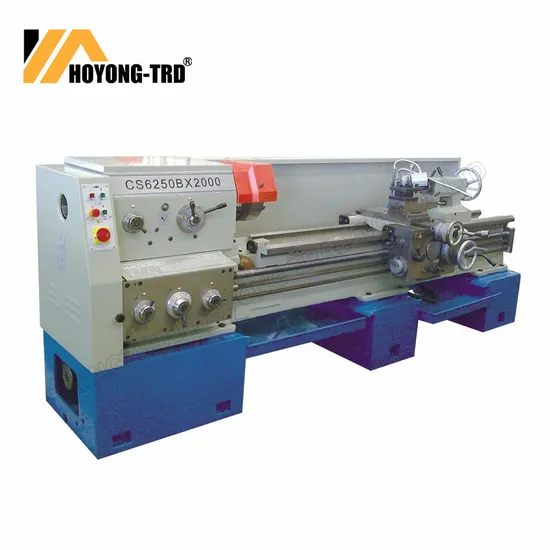

Universal Horizontal Gap Bed Lathe Machine CS6250b CS6240b CS6250c CS6266b

US$7,000.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

CS6250B CS6240B CS6250C CS6266B

Type

Horizontal Lathe

Processing Accessory

Metal

Guide Rail

Horizontal Guide Rail

Tool Holder

4 Way Tool Post

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Max.Swing Over Bed

400mm

Swing Over Cross Slide

225mm

Width of Bed

330mm

Spindle Bore

65mm

Spindle Taper

Mt6

Transport Package

Plywood Case

Specification

3200kgs

Trademark

HOYONG-TRD

Origin

Shandong, China

HS Code

84581900

Production Capacity

10 PCS/Month

Product Description

GAP BED LATHE FEATURES:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
FEATURES:

SPECIFICATIONS		UNIT	CS6150 CS6250 CS6150B CS6250B		CS6150C CS6250C
Capacity	Max. swing dia. over bed	mm	Φ500		Φ500
	Max. swing dia.over cross slide	mm	Φ300		Φ300
	Max. swing dia.in gap	mm	Φ710		Φ710
	Max. workpiece length	mm	750/1000/1500/2000/3000
	Max.turning length		700/950/1450/1950/2950
Spindle	Spindle bore diameter	mm	Φ52 Φ82 (B series)Φ105(C series)
	Taper of spindle bore		MT6 Φ90 1:20 (B series) Φ113(C series)
	Type of spindle nose	no	ISO 702/III NO.6 bayonet lock, ISO 702/II NO.8 com-lock type(B&C series)
	Spindle speed	rpm	24 steps 9-1600		12 steps 36-1600
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	Φ75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	93 kinds 0.012-2.73		65 kinds 0.027-1.07
	Z feed range	mm/r	93 kinds 0.028-6.43		65 kinds 0.63-2.52
	Metric threads	mm	48 kinds 0.5-224		22 kinds 1-14
	Inch threads	t.p.i	48 kinds 72-1/4		25 kinds 28-2
	Module threads	πmm	42 kinds 0.5-112		18 kinds 0.5-7
	Diametric pitch threads	t.p.i.π	42 kinds 56-1/4		24 kinds 56-4
Dimensions		mm	2382/2632/3132/3632/4632
			975
			1230	1270	1270	1450
Weight		Kg	1975/2050/2250/2450/2850	2050/2100/2300/2500/2900	2050/2100/2300/2500/2900	2150/2200/2400/2600/3000
