Wood Acrylic Metal Plastic EVA Foam CNC Engraving Machine

Product Description

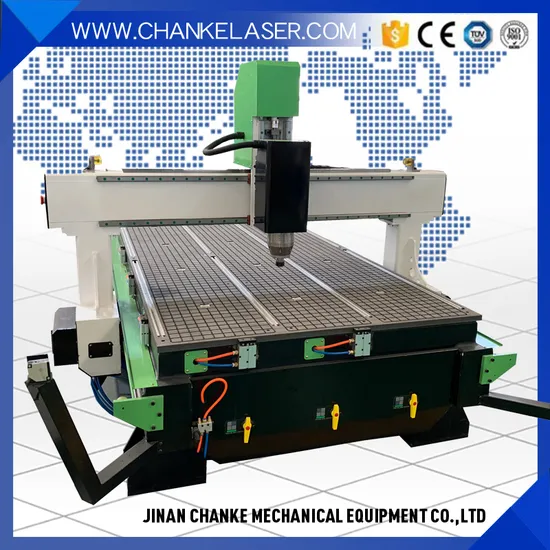

This machine is chanke company's vacuum table machine. It working size is: 1300x2500x200mm, vacuum table, using the vacuum pump to absorb the mould on the table, it is convenience for our users is don't need the materials holders, put the mould on the table , open the vacuum pump , then can working , but it has one point that not absorb the irregular , out of faltness mould , 3D embossment. This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.

But aluminium profile wood working machine can work on the 3D embossment and the irregular , out of faltness mould.

So welcome to contact us when you need wood working machines on the wooden , MDF doors or the furniture....

Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor.... so don't hesitate contact us !
Product discription

1)Adopt imported square guide rail ,double row slide block and the imported ball screw makes the machine working steadily, high precision and long life time.
2)With advanced DSP system,operated with the USB handle ,convenient operation ,humanization design.
3)Compatible with Type3/ artcam/castmate/proe/coreldraw/wentai and other CAD/CAM software
4)Vacuum table with six vacuum zones ,which can absorb different size materials.No oil vacuum pump ,high suction,more convenient,stable capability.
5)Adopt high speed stepper motor and drivers and two motors for the Y axis,max speed can reach to 35m/min,auto aligning system.

Applicable industry

Woodworking industry ,3D wave board processing,Cupboard doors,craft wooden doors,unpainting door,screen,crafts windows,milling and engraving on the furniture.

Applicable materials

MDF,wooden plate,veneer,wood ,application,PVC.

Model	CK1325 MDF cnc router
Working size	1300*2500mm
Z working travel	120-450mm
Working precision	+-0.04mm
Table structure	Vacuum table
Location precision	+-0.05mm
Power consumable	3KW
Max idle speed	50000mm/min
Max working speed	25000mm/min
Spindle power	2.2KW-9.0KWor HSD for choice
Spindle rotate speed	0-24000 r/min
Working mode	Step motor ,option servo motor
Working Voltage	AC380V/50HZ, AC380V/60HZ
Run command	G Code ,UOO file

Our service
we are factory manufacturer, so the quality of every parts of our products is monitered by our experienced technicians, we have confidence that our product will make you find a ready market. And we can also make special machines according to your detail needs. Moreover, our technicians can speak English, they can slove your problems directly in English.

1) The machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.

---
