High Speed 5g CPE, IP65 5g ODU and 5g Router Support Poe

Product Description

High speed 5g CPE 5g ODU with 24V Passive Poe, IP65 Water-Proof Level, Surge and Lightning Protection
Product Description KS-5G-OM626 is an high speed outdoor 5G CPE with SIM card slot, Qualcomm chipset, maximum 3.4Gbps in 5G speed, plug and play, high gain antenna to enhance the 5G signal, provide more speed and very stable 5G network for users.
Main Features:
High speed 5G Network, plug and play
Compatible with NSA/SA dual-mode, more than 750Mbps 5G throughput, suits to all network types all over the world, plug and play, let's enjoy the ultra-fast broadband connection at any places
PoE support
1*10/100/1000Mbps RJ45 port, support power over Ethernet, can be installed at places that far away from the power socket, besides that, it can provide Gigabit Ethernet for router/terminals.
High gain antenna and better 5G signal
Equipped with omni 5dBi antenna, easy to get the 5G signal all around, what's more, it is detachable antenna as N type detachable connector, users can select the required 5G antenna based on their requirement.
High reliability
Adopt professional outdoor engineering plastic-aluminum shell, tightly sewn; It can prevent dust and water, adapt to harsh environment such as wind, frost, rain and snow, work as usual even in extreme high and low temperature environment.
More features such as VPN, eSIM, SIM lock, SMS, Phone book and TR069 support.

Product Parameters

Hardware Spec:
Model	KS-5G-OM626
WCPU	MT7621AT
Flash	16MB
Memory	256MB DDR3
Interface	1*10/100/1000Mbps RJ45 port
	1*SIM card slot for 5G SIM card
	1* Reset button
	System Status
	Power Status
5G Antenna	Omni 5dBi 5G antenna
Power Consumption	<15W
Power Supply	24V/1A PoE power
Working temperature	Working Temperature:-20ºC~55ºC
	Storage temperature: -30ºC~70ºC
Humidity	5%~95%
Dimensions	240mmX204mmX90.5mm
4G/5G Speed
5G Chipset	Qualcomm X62 (Global Version)
4G/5G Band	5G: SA &NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; LTE-TDD: B34/B38/B39/B40/41/B42/B43/B48 WCDMA:B1/B2/B4/B5/B8/B19
4G/5G Speed	NSA TDD: Max. 3.4Gbps(DL)/550Mbps(UL); SA TDD: Max. 2.4Gbps(DL)/900Mbps(UL); LTE: 1.6Gbps(DL)/200Mbps(UL);UMTS: DC-HSDPA:42Mbps(DL) DC-HSUPS:5.76Mbps(UL);
5G Chipset	Qualcomm X62 (Europe/Middle East/Brazil/Africa Version)
4G/5G Band	5G: SA &NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71; LTE-FDD: B38/B40/B41/B42/B43; WCDMA:B1/B5/B8
4G/5G Speed	NSA TDD: Max. 3.4Gbps(DL)/550Mbps(UL); SA TDD: Max. 2.4Gbps(DL)/900Mbps(UL); LTE: 1.6Gbps(DL)/200Mbps(UL);UMTS: DC-HSDPA:42Mbps(DL) DC-HSUPS:5.76Mbps(UL);
5G Chipset	Unison UDX710 (Asia/Middle East)
4G/5G Band	5G: NSA:n41/78/79; SA:n1/28/41/77/78/79 LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28; LTE-FDD: B34/B38/B39/B40/B41; WCDMA:B1/B2/B5/B8
4G/5G Speed	NSA: Max. 2.2Gbps(DL)/575Mbps(UL); SA: Max. 2Gbps(DL)/1Gbps(UL); LTE: 600Mbps(DL)/150Mbps(UL); UMTS: 42Mbps(DL)/11Mbps(UL);
Firmware Features
Operation mode	Router/5G
VPN	VPN Client (L2TP PPTP)
TR069	Support
IP Protocol	IPv4/IPv6
Device Management	GUI web management
	Support firmware back-up, restore, reset, upgrade
Packing List	KS-5G-OM626*1 PoE adapter×1(24V1A) Installation Accessory*1 Cat 6 LAN Cable×1(1 meter) User Manual×1

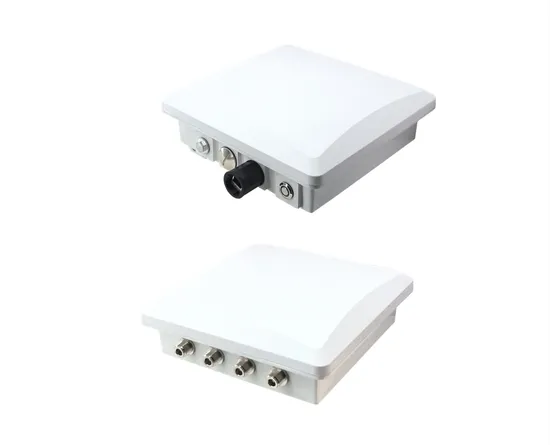

Detailed Photos
Packaging & Shipping Gift box + Carton box
Carton box: 53.5*59*51cm;
10PCS/CTN
After Sales Service 2 years warranty

FAQ Q1. 5G bands:
A: Right now it can support global bands or locally bands;
We suggest to select the one which can meet with local bands as samples;
In the mass orders, we can customize the 5G bands if QTY large to save cost and increase the quantity;Q2. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;
ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.
Q3. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.

---
