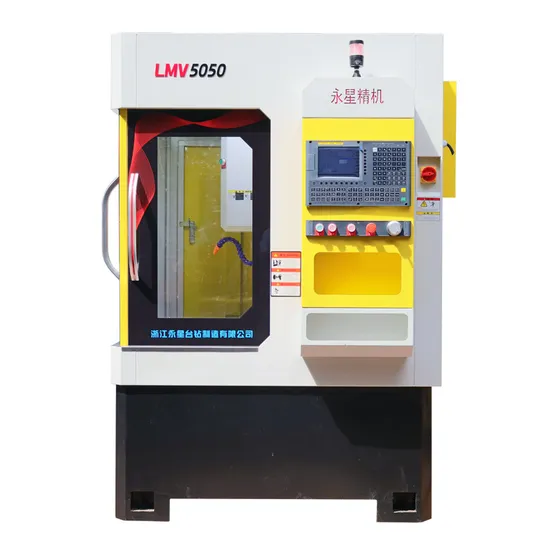

Yongxing Small CNC Gantry Machining Center Lmv-5050 Drilling and Milling Integrated Machine

Product Description

Product Description
LMV5050 Tapping center
Host Standard Configuration
1. The control system is equipped with Nanjing Yuantu S181MDC bus servo system as standard, with G-code programming; Optional Shanghai Wei Macro System, Wuhan Huazhong System, New Generation System, Mitsubishi, Fanuc
2. Spindle: BT30, max speed: 6000rpm, mechanical spindle, motor standard configuration 3KW
3. Automatic intermittent lubrication system, work lights
4. USB interface
5. Fully sealed protective cover
6. Full protective cover for guide rail
7. Adjusting the cushion blocks and bolts
Product Parameters

Main parameters of LMV-5050 drilling center
Technical parameter items		Parameter
Processing capability	Maximum drilling diameter	aluminumΦ25/steelΦ20
	Maximum tapping diameter	aluminm m16/ steel m14
	Maximum milling cutter diameter	Φ65
	Knife handle type	BT30
	Tool magazine capacity	6 pieces
	Repetitive positioning accuracy	0.01mm
	Surface carving accuracy	0.03mm
Workbench	The distance between the workbench and the spindle end	150mm
	Effective stroke of workbench	500mm*400mm
	The maximum load-bearing capacity of the workbench	200KG
Stroke	Effective stroke of X-axis	400mm
	Effective stroke of Y-axis	500mm
	Effective stroke of Z-axis	200mm
Feed	X-axis fast moving speed	35m/min
	Y-axis fast moving speed	35m/min
	Z-axis fast moving speed	35m/min
Spindle	Max spindle speed(r/min)	6000r/min
	Spindle Power(kw)	3kW
	Spindle type:	Mechanical spindle
	Spindle taper hole	BT30
Overall Dimension/Weight	Dimension(LxWxH)(mm)	1450mm*1150mm*2050mm
	Machine Weight(KG)	2500KG
Component specification	Control System	NANJING YUANTU
	Lead Screw	25mm TAIWAN p grade
	Rail	25mm TAIWAN C3grade roller guide rail
	Spindle	BT30
	Feed servo	X,Y axis 0.75kW-2.4N / Z axis 1.2kW-4N
	Spindle servo motor	3kW
	Tool magazine	Inline type
	Base	Heavy duty integrated casting base

Detailed Photos

Application


Company Profile
Zhejiang YOngxin Bench Drill Manufacturing Co. Ltd, was established in 1982, the company is a professional engaged in YONGXING brand design and manufacture of CNC Machining Center, CNC Drilling and Milling Machine, Tapping Machine, Cutting-Feed Vertical Drill Machine, Bench Drill, etc. Our Company has a professional R & D, design, production, manufacture and sales service in one of the well-known brand enterprises.
To better meet customer demand in supporting, We do OEM & ODM service based on the customer's real demands. Welcome to send us your enquiry.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Machining Center, CNC Drilling and Milling Machine, Tapping Machine, Cutting-Feed Vertical Drill Machine, Bench Drill, etc
3: Where is our factory located? How can I visit there?
A : Our factory is located in Yueqing City ,Zhejiang Province, China, convenient transportation. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
