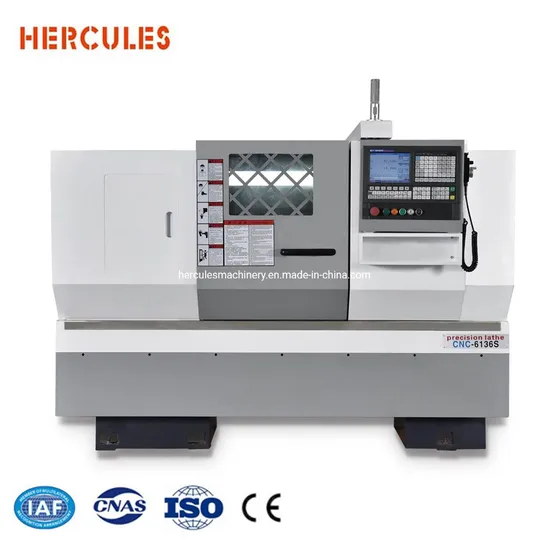

CK6163S CNC Torno Paralelo Lathe machine

US$24,500.00-28,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CK6163S
Guide Rail
Horizontal Guide Rail
Tool Holder
Electrical four tool-station
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Pallet
Specification
2900x1700x1750mm
Trademark
PLOTO OR OEM
Origin
China
HS Code
8458110000
Production Capacity
3000 Sets/Year

Product Description

Specification Unit CNC6136 CNC6140T CNC6150B CNC6150H CNC6163B CNC6163C CNC6180C
Max.swing diameter over table mm Φ400 Φ400 Φ520 Φ520 Φ630 Φ650 Φ820
Max.swing diameter over carriage mm Φ200 Φ210 Φ305 Φ305 Φ380 Φ380 Φ450
Width of guide rail mm 310 340 400 400 400 550 550
Distance between centers mm 550 850 850/1350/1850/2850 850/1350/1850/2850 850/1350/1850/2850 850/1350/1850/2850 1350/1850/2850
Feed X axis travel mm 190 210 260 260 320 350 400
Z axis travel mm 750 1000 1000/1500/2000/3000 1000/1500/2000/3000 1000/1500/2000/3000 1000/1500/2000/3000 1500/2000/3000
X/Z axis rapid traverse m/min 10/6 10/6 8/6 8/6 8/6 8/6 8/6
Spindle Spindle nose A2-6 A2-6 A2-8 A2-8 A2-8 A2-11 A2-11
Thru-hole diameter mm Φ58 Φ70 Φ82 Φ82 Φ82 Φ105 Φ105
Spindle speed r/min 30-2500 (stepless) 30-2500 (stepless) 65-210,195-220.
510-1600		 30-2000 (stepless) 65-210,195-220.
510-1600		 14-175,40-500.
100-1000		 20-80,40-180.
90-360,200-800
Chuck size inch 8 (manual) 10 (manual) 10 (manual) 10 (manual) 10 (manual) 12 (manual) 12 (manual)
Turret Tool-station 4, Opt.6 4, Opt.6 4, Opt.6 4, Opt.6 4, Opt.6 4, Opt.6 4, Opt.6
Tool size mm 25x25 25x25 25x25 25x25 25x25 30x30 30x30
Tailstock Tail type manual manual manual manual manual manual manual
Tailstock quill diameter mm Φ60 Φ60 Φ75 Φ75 Φ75 Φ75 Φ75
Tailstock sleeve taper hole M.T.#4 M.T.#4 M.T.#5 M.T.#5 M.T.#5 M.T.#5 M.T.#5
Travel of tailstock sleeve mm 140 140 150 150 150 150 150
Motor Main motor kW 5.5 7.5 7.5 11 7.5 11 11
X Axis motor kW 1.3 1.3 1.8 1.8 1.8 1.8 2.3
Z Axis motor kW 1.5 1.5 2.3 2.3 2.3 2.3 2.3
Coolant motor W 120 120 120 120 120 120 120
Positioning accuracy Unidirectional mm 0.01 0.01 0.01 0.01 0.01 0.01 0.01
Repeat mm 0.005 0.005 0.005 0.005 0.005 0.005 0.005
Dimension(L*W*H) mm 2070x1370x1800 2350x1470x1680 2800x1550x1640 2800x1550x1850 2800x1550x1850 3000x1700x1700 3600x1700x1800
Net weight kg 2000 2300 2800 3000 3000 4300 5600
Controller GSK980 TDi

Standard Accessories:
1. Manual 3 jaw chuck
2. Manual tailstock
3. 4-position electrical turret
4. Servo main motor
6. GSK 980TC3 controller
