| US$99.00-129.00 | 1 Piece (MOQ) |

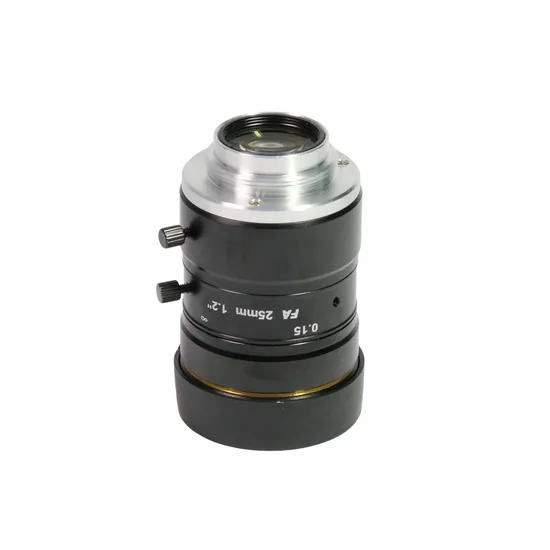

Technical Parameters of Machine Vision Lens / FA Industrial Camera Lens | ||||||||||||
| No. | Model No. | Resolution | Sensor format | FL (mm) | Mount | Filter size (mm) | Control mode | FNO | BFL (mm) | FOV | Distortion | Working temperature |
| 1 | 02-008-101 | 25MP | 1.2" | 12 | C | / | Manual | F2.8 | / | H×V: 62.6°×55.6° | -0.22%@y=9.6mm | -20ºC~+60ºC |
| 2 | 02-008-102 | 25MP | 1.2" | 16 | C | / | Manual | F2.8 | / | H×V: 49.4°×43.1° | -0.09%@y=9.6mm | -20ºC~+60ºC |
| 3 | 02-008-103 | 25MP | 1.2" | 25 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 32.6°×28.4° | -0.22%@y=9.6mm | -20ºC~+60ºC |
| 4 | 02-008-104 | 25MP | 1.2" | 35 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 23.6°×20.5° | -0.08%@y=9.6mm | -20ºC~+60ºC |
| 5 | 02-008-105 | 25MP | 1.2" | 50 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 16.6°×14.4° | -0.02%@y=9.6mm | -20ºC~+60ºC |
| 6 | 02-008-106 | 25MP | 1.2" | 75 | C | M30.5×P0.5 | Manual | F2.8 | / | H×V: 11.2°×9.6° | -0.01%@y=9.6mm | -20ºC~+60ºC |
