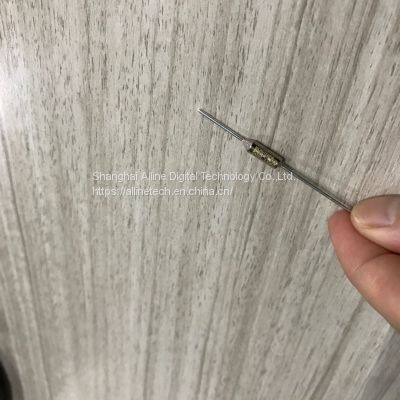

MICROTEMP® 73 °C thermal cutoffs from Therm-O-Disc

Product Details

Product Description

Product Description
The MICROTEMP® G4 Thermal Cutoff is rated for continuous operating currents up to 10 amps @ 250VAC.
Standard Type: G4A00073C / G4A01073C / G4A50073C / G4A51073C
E4A00073C / E4A01073C / E4A50073C / E4A51073C
Electrical Ratings & Agency Recognition:
UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC
VDE -- 10A/250VAC
CCC -- 10A/250VAC
PSE JET -- 10A/250VAC
KC -- 10A/250VAC
Overall Length: 63.8mm(G4A00073C) / 82.9mm(G4A01073C)
Rated Functioning Temperature (Tf): 73°C
Holding Temperature (Th): 58°C
Maximum Temperature Limit (Tm): 100°C
The MICROTEMP® G5 Thermal Cutoff is rated for continuous operating currents up to 20 amps @ 250VAC.
Standard Type: G5A00073C / G5A01073C / G5A50073C / G5A51073C
E5A00073C / E5A01073C / E5A50073C / E5A51073C
Electrical Ratings & Agency Recognition:
UL/CSA --20A/250VAC, 25A/120VAC,21A/240VAC,20A/277VAC
VDE -- 20A/250VAC
CCC -- 20A/250VAC
PSE JET -- 15A/250VAC
KC -- 16A/250VAC
Overall Length: 63.8mm(G5A00073C) / 82.9mm(G5A01073C)
Rated Functioning Temperature (Tf): 73°C
Holding Temperature (Th): 58°C
Maximum Temperature Limit (Tm): 410°C
The MICROTEMP® G6 Thermal Cutoff is rated for continuous operating currents up to 16 amps @ 250VAC.
Standard Type: G6A00073C / G6A01073C
Electrical Ratings & Agency Recognition:
UL/CSA --16A/250VAC
VDE -- 16A/250VAC
CCC -- 16A/250VAC
PSE JET -- 15A/250VAC
Overall Length: 63.8mm(G6A00073C) / 82.9mm(G6A01073C)
Rated Functioning Temperature (Tf): 73°C
Holding Temperature (Th): 48°C
Maximum Temperature Limit (Tm): 100°C
The MICROTEMP® G8 Thermal Cutoff is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.
Standard Type: G8A00073C / G8A01073C / G8A50073C / G8A51073C
E8A00073C / E8A01073C / E8A50073C / E8A51073C
Electrical Ratings & Agency Recognition:
UL/CSA --20A/277VAC, 25A/250VAC
VDE -- 25A/250VAC
CCC -- 25A/250VAC
PSE JET -- 25A/250VAC
Overall Length: 63.8mm(G8A00073C) / 82.9mm(G8A01073C)
Rated Functioning Temperature (Tf): 73°C
Holding Temperature (Th): 48°C
Maximum Temperature Limit (Tm): 410°C

---
