Non-Woven Felt Blanket Production Machine Ironing Machine for Product Surface Hardness and Smoothness Calender

Product Description

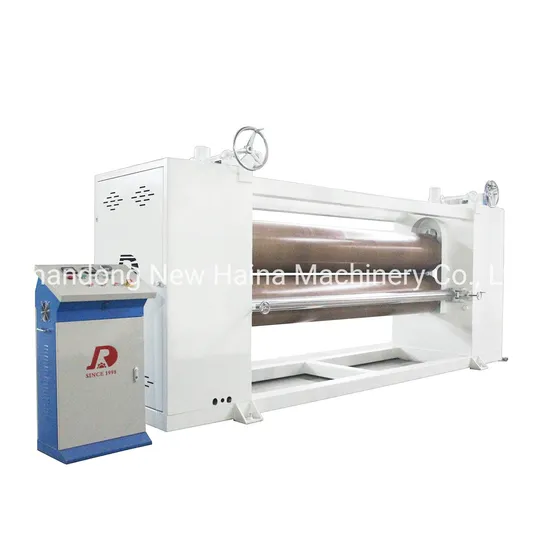

Hot Heating Roller Calender for Non woven Felt
It is suitable for heating treatment of nonwovens surface to reach required thickness, smoothness, hardness.
Heating method: electric or oil boiler.
Two kind of structural style: 2-rollers vertical and 3-rollers vertical.
Temperature is auto-controlled and digital displayed.

Non woven 2 Hot Heating Roller Calender for Non woven Felt
Heating roller with tetrafluoroethylene adhesion
3-rollers Hot Heating Roller Calender for Non woven Felt

Heating roller with tetrafluoroethylene adhesion

NO.	ITEM	DESCRIPTION
1	Model	GMC-200--520
2	Running speed	≤8m/min
3	Power	4kw *9 (1 roller)
4	Structural features	1:Three-roll vertical, electric heat conduction oil heating insulation. The main body frame is made of high quality carbon steel welded together 2: At the bottom of the roller is adjustable, in the middle of the roller is fixed, the upper roller manual worm gear to adjust elevator, the adjusting range is 0 to 50mm
5	Heating roller	Φ300--- Φ570mm; Material of 45 # steel, wall thickness, 30mm roller surface 2000mm long, fine grinding hard chrome plated surface or tetrafluoroethylene adhesion. Adjustable surface temperature of 100 ~ 220 ºC
6	Power	(every roller adopts nine hits 4 kw heating, electric heating tube is divided into three group control)

Features:
1. Frequency conversion controlled speed.
2. Automatic temperature control ensuring constant heating temperature
3. Hermetic thermal oil makes the heating effect evenly.
4. Heating roller: Teflon surface
Loading

Calender in production
Our carding machine usually be used in producton line of non woven felt
( including pre-opener, hopper feeder, cross lapper, calender, needle punching machine etc.)
Material----- product (non woven felt)

---
