US$1,111,111.00
|
1 Set
(MOQ)
|
Basic Info.
Function
Cutting, Engraving, Milling, Polishing
Application Material
Marble
Motor Power
7.5kw Spindle
Engraving Head Speed Adjustability
Wide Adjustable Range
Application
Stone Industry, Making Marble Granite Roman Columns Pillars
Product Name
CNC Stone Lathe Machine
Working Size
800mm Diameter *1700mm Length (Can Be Customized)
Optional Working Size
700mm Diameter *3000mm Length
Milling Head/Sindle Power
5.5kw/7.5kw/11kw Water Cooling
with Saw Disc
for Fast Rough Machining
with Spindle/Milling Head
for Engraving Details
Motor
Stepper/Servo Motor
Control System
4 Axis DSP/Ncstudio
Usage
Making Marble Granite Roman Columns Pillars
Option 2
Same Machine with 3 Axis / 5 Axis
Option 3
Also Can Process Aluminium, Wood, Fiberglass...
Transport Package
Wrapped by Film, Fastened Into Container
Specification
800mm Diameter *1700mm Length (can be customized)
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
420.00cm * 220.00cm * 200.00cm
Package Gross Weight
3500.000kg
Product Description

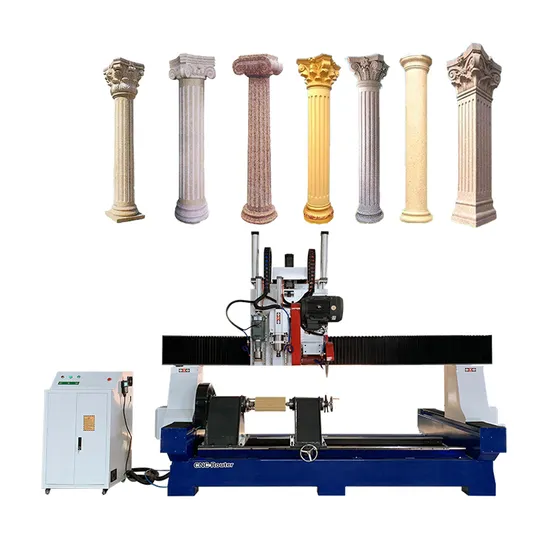

Factory Price! CNC Stone Lathe Machine With Saw Blade & Milling Head for Making Marble Granite Roman Columns Pillars
Heavy duty steel structure, keep machine with very good stability. Adopt good quality machine parts,to make machine with high performance and durability. With electrical spindle, to make engraving. With saw blade unit, to make fast roughing/grooving. The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars. The working size can be customized according to customers' specific requirements. There are 3 axis/5 axis same machines for choosing.
Model No.
| JCS8017R
|
Lathe bed
| heavy duty steel structure
|
Working size
| 800mm diameter, 1700mm length (can be customized)
|
Spindle power
| 5.5 /7.5 /11KW
|
Spindle rotating
| 12000 /18000 /24000rpm
|
Max.travelling speed
| 30m/min
|
Max.working speed
| 15m/min
|
Control system
| 4 axis DSP/Nsctudio
|
Motor
| Stepper /Servo
|
Saw blade unit
| yes
|
Polishing pad unit
| yes
|
Auto oil system
| yes
|
Voltage
| AC380v,3 phase,50Hz
|
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Fiberglass, Acrylic, Wood, PVC, EPS Foam,Aluminum composite panel, Aluminum block, Copper and so on.
Application: Marble Granite Stone Roman Columns Corbel Pilasters Cylinders Pillars...
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
>>
