2020 CNC Saw Blade Side Grinding Machine

US$999.00-14,000.00 1 unit (MOQ)

Basic Info.

Model NO.

NS 500

Abrasives

Grinding Wheel

Controlling Mode

CNC

Automatic Grade

Automatic

Cylindrical Grinder Type

Plunge Cylindrical Grinder

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Saw Blade Dia

110~510mm

Saw Blade Thickness

0.5~8mm

Side Angle

5° ~ -5°

Side Relief

5° ~ -5°

Hook Angle

-5° ~ 28°

Bore Dia

12~120mm

Wheel Dia

80~100mm

Wheel Speed

5000r/Min

Grinding Speed

1~20mm/S

Dimentions

1400 *1250 *1820mm

Power

3kw

Weight

1400kg

Voltage

AC 380V-50Hz/220V-60Hz

Transport Package

PE Bag + Wood Carton

Specification

1400 *1250 *1820mm

Trademark

TORSEL

Origin

China

HS Code

8460310000

Production Capacity

5000units/Year

Product Description

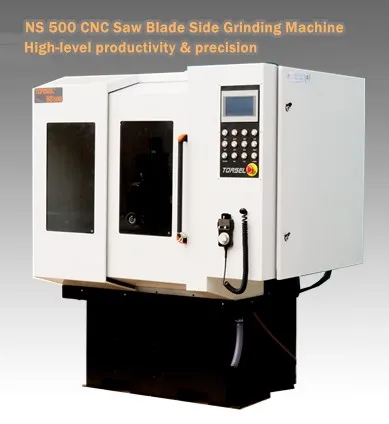

NS 500 CNC Side of Saw Blade Grinding Machine High-level productivity & precision grinding machine for carbide tools.
Advantages of Saw Blade Side Grinding Machine • More precision- grinding precision: <0.02mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
CNC Control- be flexible to control precision as requirement.
3-D Graphics Grinding Machine

Technical Premeter

Saw Blade Diameter	110~510mm
Saw Blade Thickness	0.5~8mm
Side Angle	5°~ -5°
Side Relief	5°~ -5°
Hook Angle	-5°~28°
Bore Diameter	12~120mm
Pitch	2~65mm
Cutter Head Length	1~15mm
Wheel Diameter	80~100mm*32mm
Wheel Speed	5000r/min
Grinding Speed	1~20mm/s
Power	3Kw
Dimensions	1400 X1250 X1820mm
Weight	1400kg

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.02mmthe service life is upto 15 years. 3. Whats your cooperation companys?
