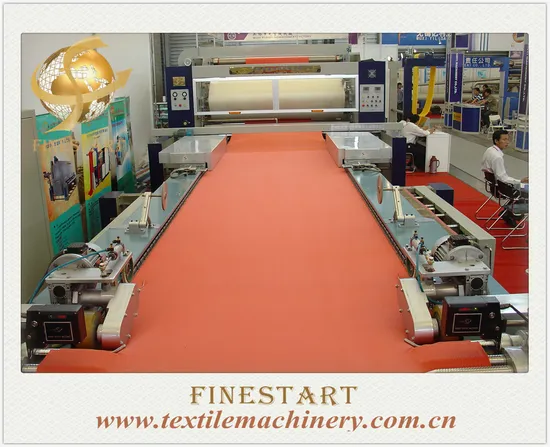

Open Width Compactor for Knitted Open Width Fabric

Product Description

Introduction
The machine is used for open width cotton fabric pre-shrinking process.
At the beginning of overfeed, the cotton fiber will be processed by steaming to increase the humidity and plasticity. Then the fabric will be widened and pre-shrinked in order to reduce shrinkage and get a good soft feature.
Some fabric could be used directly after drying machine processing, and you can get a stable size, qualified shrinkage and soft effect. If the fabric couldn't reach the standard, you can repeat the processing step and obtain satisfactory result.

Based on different fabric width, we can provide the following machine models:
FSLS-2200mm/2400mm (standard)/2600 mm
Based on different heat sources, our machine adopt 3 heat methods:
Steam, Electricity + Oil, Circulation Conducting Oil
Our machine is mainly used for cotton and other natural fibers,
***The machine can NOT be used for synthetic fabrics.
Design Drawing
Basic Information & Technical Data

Model	FSLS2400
Name	Compactor
Application	Textile-finishing(shrinkage rate:4-5%)
Suitable Fabric	Open-witdh knitted Fabric,Pure cotton,wool,blended fabric(cotton content>65%)
Felt Max. Width	2400mm
Tentering Max. Width	2600mm
Working Speed	3-35m/min
Rail Type	Stainless Steel+ Graphite
Dimension	Approx. (14540*4100*3000mm)L*W*H
Weight	Approx. 12t
Compressed Air	0.35-0.6MPa
Tentering Working Type	Horizontal Circulating Chain(Stainless Steel Pin Plate & Holder,Pitch:60mm)
Compacting Type	Felt Belt(Nomex)+ Hot Cylinder, Felt Belt Thickness:20-21mm

Cost & Consumption

heat source of Hot cylinder
No	Item	Cylinder Max.Temp	Specification	Consumption
1	Electricity heat conduction Oil	190ºC	Industrial Electricity	25-54KW
Saturated Steam for Steam Box
No	Item	Max.Temp	Specification	Consumption
1	Saturated Steam	140ºC	3-6Kg/cm²	100-150kg/h
Electricity
No	Item	Specification		Consumption
1	Driving System	Main Motor etc		21KW

Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be by TT or irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment.

Any questions and requirments,contact us now!

---
