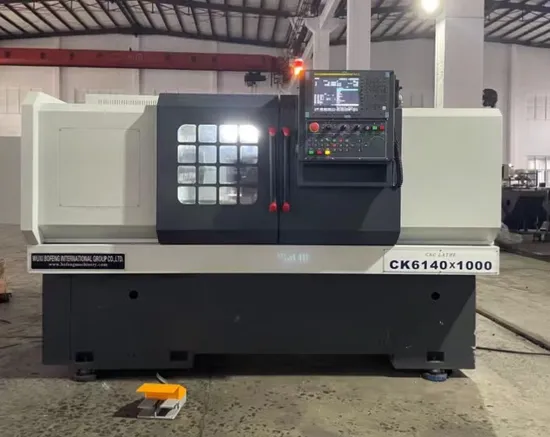

Precision Metal Turning CNC Lathe Machine Ck6140 Horizontal Flat Bed CNC Lathe

Product Description

Main Feature:
1.Machine body are made of resin sand casting with timing treatment, which guarantees stability of the machine.
2.Horizontal and cross travels are driven by servo motor.
3.High frequency induction hardened guideways bonded with Turcite-B material enable fast response of moving axes,
high accuracy and long lifespan.
4.High precision ball screws and rigid precision bearings.
5.Full enclosed cover or semi-enlocsed cover.
6.GSK, Siemens, FANUC CNC system.
7.With unique auto gear changing mechanism, match with inverter control spindle motor, stepless speed. ( 2 stages) for option.
8.Different electric turret tool changer.
Specification:

Model		CK6140B	CK6150B	CK6160B
Max. Dia. Over bed (mm)		400	500	600
Max. Swing over tool (mm)		210	310	350
Max. Turning length (mm)		750/1000/1500/2000
Bed width (mm)		360
X axis travel (mm)		210	260	310
Z axis travel (mm)
Spindle speed( rpm)		100-1600	100-1600	100-1600
Spindle taper		MT6/1:20(C6/C8)
Spindle bore dia (mm)		Ф 52/82	Ф 52/82	Ф 52/82
Turret Tool changer		4, 6 or 8 position
Tool shank size (mm)		25*25	25*25	25*25
X axis rapid traverse (mm/min)		4000
Z axis rapid traverse (mm/min)		7000
Taper of sleeve		5#	5#	5#
Dia. of sleeve (mm)		75	75	75
Travel of sleeve (mm)		150	150	150
Main motor power (kw)		5.5	5.5/7.5	5.5/7.5
Coolant pump motor power (w)
Dimension(mm)	L 750mm	2150*1300*1700	2350*1350*1850	2350*1400*1900
Weight (kg)		1600	2000	2200
Dimension(mm)	L 1000mm	2300*1300*1700	2500*1350*1850	2500*1400*1900
Weight (kg)		1700	2200	2400
Dimension(mm)	L 1500mm	2800*1300*1700	3000*1350*1850	3000*1400*1900
Weight (kg)		2000	2500	2700
Dimension(mm)	L 2000mm	3400*1300*1700	3600*1350*1850	3600*1400*1900
Weight (kg)		2300	2800	3000

---
