Factory Direct High-Quality Durable Livestock Transport Trucks, Efficient Transport Capacity, Safe and Reliable

Product Description

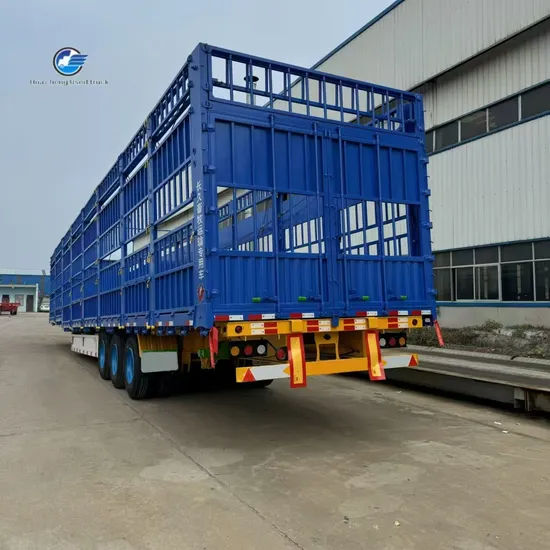

Product Description Fence Semi TrailerFence Semi Trailer are very widely used for medium and long-distance transportation of normal and heavy goods and bulk goods. Its diverse applicability has made it the first choice for medium and long-distance freight vehicles. The trailer body is made of high-quality steel and advanced technology under strict production standard. It has practical structure, reliable performance, simple operation and refined appearance. The frame of cargo semi trailer is of through beam structure, and the longitudinal beam adopts straight type or gooseneck type. The middle plate is welded with manganese, and the longitudinal beam is welded with automatic submerged welding. The frame is shot peened, and the transverse beam penetrates into the longitudinal beam and is welded as a whole. The suspension adopts non-independent steel plate stamping, which is made of series steel plate spring and suspension support. This structure is practical and has strong rigidity and strength, which is used to support the load and reduce impact during transportation and loading.1. High strength - The whole trailer is made of Shanghai Baosteel materials, with light weight (6.1-6.43) and high strength.
2. Convenient unloading - The third column is designed on the high slab to avoid the problem of poor unloading of the stock at the step when transporting bulk cargo.
3. Reasonable structure - It adopts the design of broken cross beam to organically integrate the cross beam and the frame. Compared with the W-shaped through beam, the strength is higher and the structure is more reasonable.
4. Quality assurance - The axle adopts Fuhua disc brakes, and the air suspension adopts imported airbags to ensure quality and worry-free after-sales.
Detailed Photos
Product Parameters Storage grid semi-trailer 2/3 axles

Tare Weight	About 8T
Dimension	13000mm*2490mm*2860mm (Outer side)
Loading Capacity (T)	30 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand; (optional) Two pieces
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type)
Spring leaf	90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brandE100T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Side Wall	1500mm-1800mm ,the open door can be choose freely. With 300-500mm height square tube or round tube
Bottom Platform	3mm-5mm thickness (According to the capacity which you loading for )
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Storage grid semi-trailer 4 axles

Tare Weight	About 10T
Dimension	13000mm*2490mm*2860mm (Outer side)
Loading Capacity (T)	50 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand; (optional) Two pieces
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type)/ Air suspension
Spring leaf	90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brandE100T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Side Wall	1800mm ,the open door can be choose freely. With 300-500mm height square tube or round tube
Bottom Platform	3mm-5mm thickness (According to the capacity which you loading for )
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

Our Advantages Liangshan is China's largest used commercial vehicle trading base, China's special purpose vehicle manufacturing base, relying on The local strong industrial base, Liangshan Huacheng Automobile Sales Co., Ltd. quickly rose to become China's important second-hand commercial vehicle trading base. Market covers an area of 10000 square meters, inventory of more than 2000 vehicles, Including CNHTC, Shaanxi Automobile, Beiben, FAW, Dongfeng, etc. No matter what brand of truck you need, we have it all. Liangshan Huacheng Automobile Sales Co., Ltd. has a vehicle refurbishment workshop, all export vehicles will be Cleaning, beautification, maintenance, repair and modification according to Chinese laws and application conditions to ensure the maximum degree of vehicle Quality. We will also set up overseas warehouses, spare parts warehouses and after-sales outlets around the world for Customers provide after-sales service. We can also provide customized services for you. Huchengtruck cooperates with several well-known cross-border e-commerce platforms to establish online sales platforms and It has established cooperative relations with truck dealers in many countries in Africa, Southeast Asia and Central Asia, and has become an important export base for used commercial vehicles in China. Our hot selling Chinese brand trucks include Hao Wo, Shaanxi Automobile, Beiben, etc. These vehicles have received very good response from foreign customers and look forward to establishing cooperative relations with more overseas partners.

Company Profile Over the years, we have always adhered to the business strategy of "innovation, development" and the concept of "quality is the life of the enterprise, talent is the foundation of the enterprise, customer is the god of the enterprise, management is the soul of the enterprise".Now, Nanou trailers are widely exported to most Africa market (such as Algeria, Zimbabwe, Ethiopia, Kenya, Nigeria, Sudan, Malawi, Tanzania, Cameroon, Ghana, Qatar)and Dubai, Saudi Arabia, Iran, Malaysia, Philippines, Vietnam, Pakistan, Russia, and Central& South America market.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.We are looking forward to forming successful business relationships with new clients around the world in the near future.
FAQ Payment terms: T/T
Delivery time; Within 15 days after receipt the deposit
Packing: In nude with wax painting before deliver to port
Shipment type: By bulk ship, Ro-Ro or container Firstly,you please send us your enquiry;
Secondly,we will reply you with the quotation within 12 hours;
Thirdly,we negotiate on the configuration that you need;
Fourthly,confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
Fifthly,manufacturing process updated news → completing production;
Sixthly, balance payment → ex works → shipment → custom clearance → A/S service for 1 year.

---
