Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
CE, ISO 9001
Name
Drilling and Miling Machine
Max.Horizontal Milling Dia (mm)
100
Max.Vertical Milling Dia (mm)
25
Distance.Spindle to Table Surface (mm)
90-490
Spindle Speeds Range (r.p.m)
(Vertical)115-1750 (Horizontal)60-1350
Transport Package
Wooden Case, No Need Fumigation, Plastic Cover
Specification
CE, ISO9001
Production Capacity
100PCS/Month
Product Description

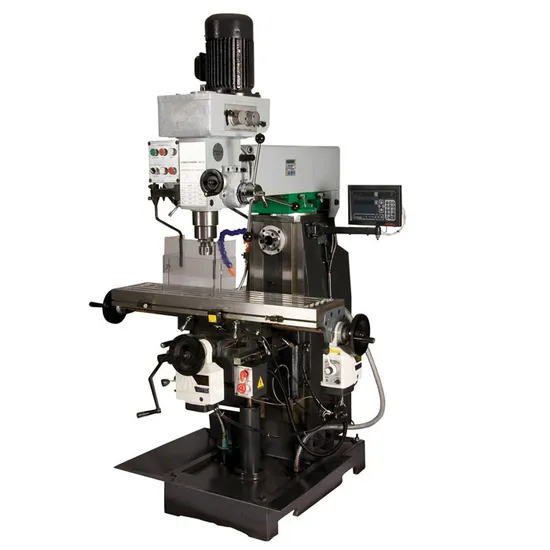

ZX7550CW mini manual vertical horizontal universal drilling and milling machine
Main features:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5.Three axis hardened treatment, high rigidity.
6.vertical horizontal multi-functional ,drilling ,milling, boring operation.
7.X axis mechanical feed,Y.Z axis can be added the device
8.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
Standard accessories:
Horizontal Cutter bar, Draw bar, worklight , cooling pump, Milling chuck, drill chuck, oil collecting plate, Operation manual
Optional accessories:
Universal dividing head
Rotary table
Machine vice
Slotting head
Milling chuck set
DRO
Clamping kits
Boring head
Transimission box
| Model | ZX7550W | ZX7550CW |
| Max.drilling dia (mm) | 50 | 50 |
| Max.horizontal milling dia (mm) | 100 | 100 |
| Max.vertical milling dia (mm) | 25 | 25 |
| Max.boring dia (mm) | 120 | 120 |
| Max.tapping dia | M16(Vertical) | M16 |
| Spindel Tapper | ISO30/R8 | ISO30/R8 |
| Distance.spindle to table surface (mm) | 80-460 | 90-490 |
| Spindle speeds range (r.p.m) | 230-1825(Vertical) 80-1300(horizontal) | (Vertical)115-1750 (Horizontal)60-1350 |
| Spindle travel | 120 | 120 |
| Table size (mm) | 800x240 | 800×240 |
| Table travel (mm) | 400x230 | 400×230 |
| Overall dimensions (mm) | 1280×1100×2080 | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5(Vertical) 1.1(horizontal) | ( Vertical)0.85/1.5 (horizontal)2.2 |
| N.W/G.W (Kg) | 700/880 | 850/1000
|
>>
