System Category :| LCD/OLED/EPD Flat Panel > TFT-LCD Panel |
Brand :| ZX Display |
Series :| 13.3'' High Bright LCD |

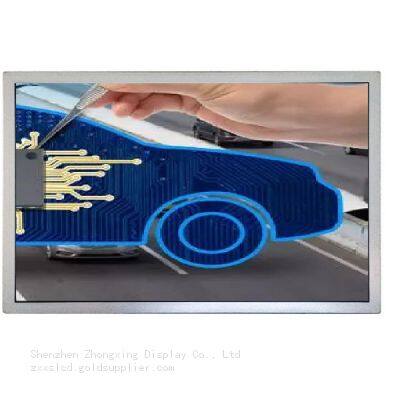

Model :| ZX133-1000 |
Keywords Desc. :| 13.3-inch 1920*1080, IPS, 1000 brightness, 30PINS EDP, ZX Display High Bright LCD |
Product Class :| Graphic Display |
Product Tags :| Color TFT-LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application :| Digital Signage, Industrial, Outdoor High Brightness |
Panel Type :| a-Si TFT-LCD |
Panel Composition :| LCM |
Panel Size :| 13.3" |
Resolution :| 1920×1080 |
Aspect Ratio :| 16:9 (W:H) |
Form Factor :| Flat Rectangle |
Active Area :| 293.76 (W) × 165.24 (H) mm (A.A) |
Outline Dimension :| 307.6 (W) × 183.05 (H) mm |
Max. Depth :| 5.5 mm |
LC Family :| IPS |
Polarizer :| Transmissive |
Brightness :| 1000 (Typ.) |
Contrast Ratio :| 1000:1 (Typ.) |
Viewing Angle :| 89/89/89/89 (L/R/U/D) |
Viewing Direction :| Symmetry |
Display Colors :| 16.7M |
Backlight Type :| WLED |
Interface Type :| eDP |
Interface Pins :| 30 Pins |
Touch Panel :| Without |
Operating Temp. :| 0 ~ 50 °C |
Storage Temp. :| -20 ~ 60 °C |
