API 6D Pneumatic Control Ball Valveapi Full Bore Trunnion Stainless Steel Forged 3PC Ball Valveapi Full Bore Ball Oil Valve Fire Safety

Product Description

MAIN FEATURES

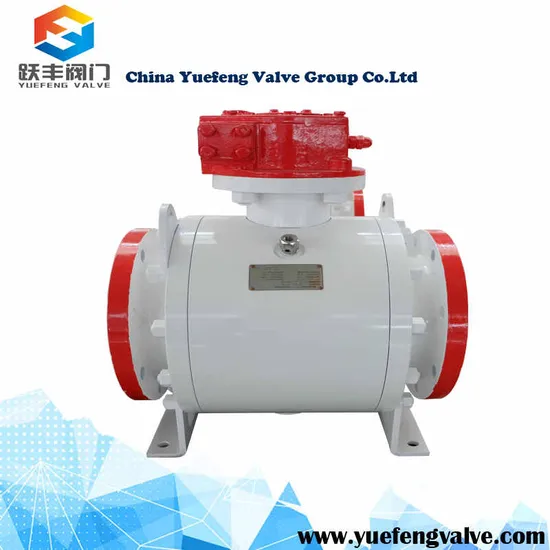

The YFV FIX ball valve adopts forged material, welded body, instead of bolts and nuts, to aviod any potential leakage from body.
The forged body with regular structure and even thickness can avoid shrinkage cavities, pin holes, cracks, sand holes and other defects occurring to casting body valves.

fix trunnion ball valves can be spherical and cylindrical type. Usually the spherical type has only one welding seam on the body, the cylindrical type has two welding seam on the body.

DN(mm)		50-1200
PN(MPa)		1.6	2.5			4.0
Test	Strength	2.4		3.75		6.4
	Sealing	1.8	2.75			4.4
Material code		C	P			R
Major parts	Body	WCB		ZG1Cr18Ni9Ti		ZG1Cr18Ni12Mo2Ti
	Plate	2Cr13	1Cr18Ni9Ti			1Cr18Ni12Mo2Ti
	Stem	2Cr13		1Cr18Ni9Ti		1Cr18Ni12Mo2Ti
	Sealing ring	RPTFE	PPL
	Filling	PTFE	Flexible graphite
Working conditions	Medium	Water,gas ,oil	Nitric acid		Acetic acid
	Temperature	-28ºC~300ºC
Actutor	Type	GT Or AW Series
	Air pressure	0.3-0.7MPa

Design Features
The ball valve are designed in accordance with ISO14313,API 6D;
Simple structure with good tightness and small torque;
With a fully-welded valve body, full bore and the minimum flow resistance (zero actually);
Emergency sealant injection;
Cavity pressure self relief;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Valve seat function DBB, DIB-1, DIB-2;
Optional extended bonnet;
Optional overlay stainless steel on body to seat surface and/or gasket container surface;
Be able to be used for underground installation without corrosion of interior parts, therefore, it is the best application for petroleum and natural gas line systems;
Service life up to 30 years.
PRODUCT
Certificates & Test reports
Packing&Shipping
FAQ
Q:Are you a trading company or a manufacturer?
We are a manufacturer with a 13,000 square metre factory.
Q:Can you provide assembly drawings?
Yes, we will provide the relevant drawings as soon as possible if you need them.
Q:How do you guarantee the quality of your products?
A: Before the products leave the factory, our quality inspectors will inspect each product before shipment to ensure the pass rate.
Q: Can you produce different standard valves according to customers' requirements?
A: Yes, please provide specific details, such as model, size, pressure, material and so on.
Q:How long is your delivery time?
A: Usually 15-30 days, it depends on the order quantity and our storage.

---
