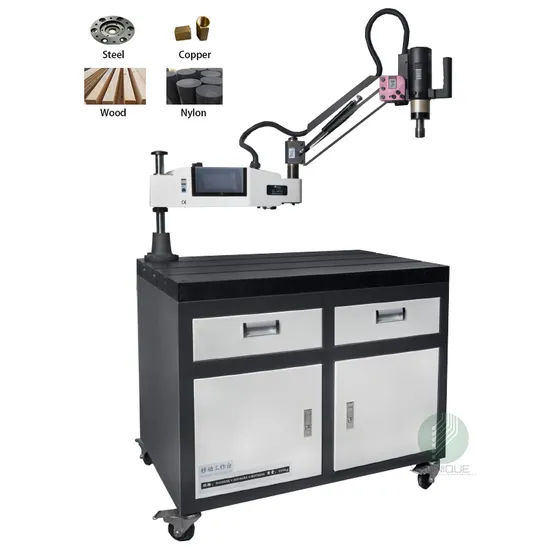

Screw / Bolt / Nut Pipe Drilling Machine

Product Description

Product Description
1. The machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.2. Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.4. Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.5. Automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.6. Repeated positioning fast, tapping speed, high production efficiency.
Technical Parameters

Model	M10	M12	M16	M20	M24	M30
Input Voltage	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Rated Power	600W	600W	600W	600W	1200W	1200W
Tapping Range	M3-M10	M3-M12	M3-M16	M3-M20	M3-M24	M3-M30
Operation Mode	Vertical /Vertical Horizontal
Working Radius	1045mm	1045mm	1045mm	1045mm	1180mm	1180mm
Maximum Speed	1200rpm	660rpm	375rpm	240rpm	550rpm	200rpm
Package Size	700*660*220mm	700*660*220mm	700*660*220mm	700*660*220mm	810*770*220mm	810*770*220mm
Equipment Weight	31kg	31kg	31kg	31kg	52.5kg	52.5kg

Main Application
Packaging & Shipping
Company Profile
Certification and Exhibition
FAQ
Q: How to choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: What delivery time for standard machine?
A: Within 20 working days after received advanced payment.
Q: What about your machine warranty?
A: One year warranty after machine reached customer's workshop.And will responsible for lifetime maintenance
Q: What about delivery terms and payment terms?
A: Delivery terms: 50% deposit, 50% paid before shipment.FOB Ningbo, ClF your portPayment Terms: T/T, L/C
Q: How about your service?
A: Before Sales Serive:
1. We will confirm the right model according to the offered pipe inforamtion.
2.Welcome to visit our factory and workshop before you place an order.
After Sales Service:
1. We provide manual,detailed machine installation,commissioning video for operate machine.
2.We provide free installation,commissioning and training at our factory.
If you need enginer go to your factory for machine training, air tickets,food,hotel, local transportation, engineer's salary should be at your account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.

---
