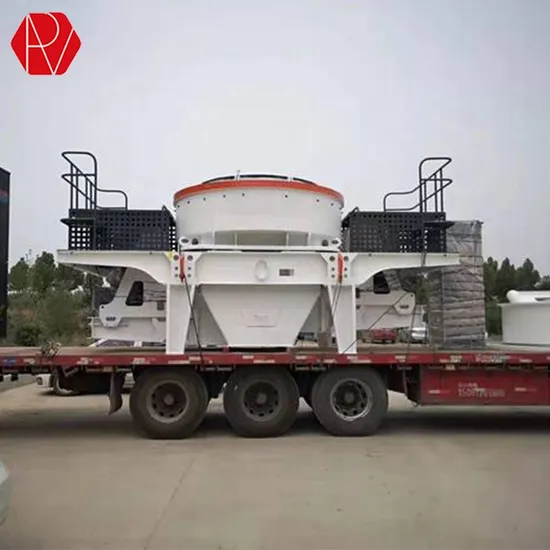

High Efficiency Mining Vertical Shaft Impact Crusher VSI7611 VSI Sand Maker

Product Description

VSI5X series main specification
Model		Capacity		Maximum feed size		Speed (r/min)	Double motor power (kw)	Weight (t)	Power supply	Dimension[L×W×H] (mm)
		Side and central feeding	Fully central feeding	Soft material	Hard material
VSI5X7615		150-280	70-140	35	30	1700-1900	150	10	380v, 50hz	4100×2322×2459
VSI5X8522		240-380	120-190	40	35	1500-1700	220	12.5		4500×2478×2658
VSI5X9532		350-540	180-280	45	40	1300-1510	320	14.5		4800×2571×2893
VSI5X1145		500-640	250-360	50	45	1100-1310	440	19		5500×2799×3320
Hydraulic lubrication station	Power(kW)	0.75
	Safety	Automatic stop working when weak oil flow or low hydraulic pressure, Air cooling system, start heating system automatically in winter.
	Flow capacity	4-16L
	Oil tank heater power	4kW

VSI series main specification
Model		Capacity		Maximum feed size		Speed (r/min)	Double motor power (kw)	Weight (t)	Power supply	Vibration sensor	Dimension[L×W×H] (mm)
		Side and central feeding	Fully central feeding	Soft material	Hard material
VSI7611		120-180	60-90	35	30	1700-1890	110	11.8	380v, 50hz	2×0.25kW	3700×2150×2100
VSI8518		200-260	100-130	40	35	1520-1690	180	14.5			4140×2280×2425
VSI9526		300-380	150-190	45	40	1360-1510	264	17.8			4560×2447×2778
VSI1140		450-520	225-260	50	45	1180-1310	400	25.6			5000×2700×3300
Hydraulic lubrication station	Power(kW)	0.75
	Safety	Automatic stop working when weak oil flow or low hydraulic pressure, Air cooling system, start heating system automatically in winter.
	Flow capacity	4-16L
	Oil tank heater power	4kW

Hangzhou Cohesion Technology CO.,LTD has been specializing in manufacturing and supplying mining equipment and the relevant parts for over 20 years. With the good quality and professional service, Hangzhou Cohesion Technology has won the fame in the industry of crushing machinery globally.
Our products include: jaw crushers, cone crushers, impact crushers, vibrating feeders, vibrating screens, belt conveyors, crushing plant, dust collector & etc. Our technical team can customize for your crushing and screening plant based on your requirements.
The crusher parts we produce almost cover all the famous brands, including: Met.so, Sanvik, Terex, Telsmith, Hazemag, Kleemann, Trlo, Symons, Shanbao, Shibang & etc.
We are dedicated to providing "the one-stop solution service" for mining equipment and the relevant parts. We are aiming to make our customers' job easier and to make their business more successful.

---
