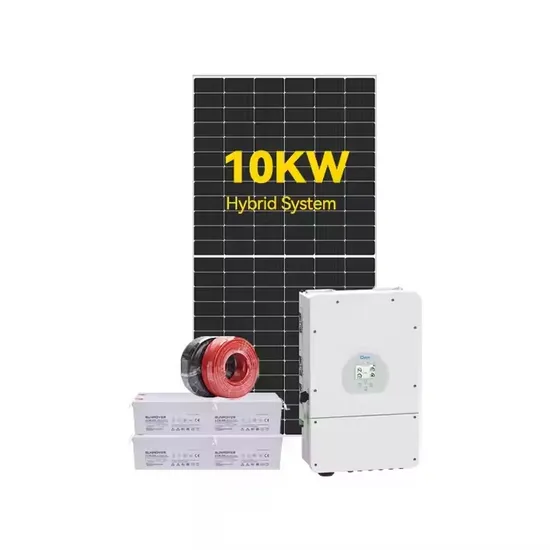

10kVA Solar System Home Cheap Price Complete 10kw off Grid Solar System

Product Description

Product Description On grid system:
On grid system means that the electricity generated by the solar panels is converted from direct current to alternating current through the inverter, and the generated electricity is sold to the power grid company. There are usually have two modes: 1. Self-use, surplus electricity is sold to the power grid company; 2. All electricity is sold to the power grid company.
Off grid system:
Off-grid generation means that the electricity generated by the solar panels is stored in a battery, not connected to the grid, and the home is powered by the electricity stored in the battery.
Hybrid system:
The off grid have the third option, we called on and off grid hybrid system (off grid 2) at the input side, have solar panel, battery, grid power, the first choice use solar panel , if the solar panel directly power not enough will use battery power, then if battery power not enough , will use grid power, that's the best selling item for islands or some places short of grid power

SINGLE PHASE 10KW ON GRID SYSTEM (45KWH/Daily Output)
TYPE		MODEL		SPECIFICATION		QUANTITY	UNIT (USD)	AMOUNT (USD)	MARK
SOLAR PANEL		GKA550		42.3V,13A, 10PCS/ARRAY*2		20	63	1260	11000W,DAILY 45KWH
SOLAR INVERTER		INVT XG10KTL		MAX:15KW,80-560V, 28A,2MPPT		1	554	554	SOLIS, GROWATT, DEYE OPTIONAL
AC COMBINER BOX		AC-02		SPD, Protection,Breaker		1	139	139	CE
SOLAR CABLE		4MM2		MAX CURRENT 32A		200	0.61	122	CE,TUV
PV CONNECTOR		MC4		1000V,IP67		20	0.5	10	CE,TUV
MOUNTING SYSTEM		YK-PM01		ROOF (customize)		10000	0.04	400	ALUMINUM
INSTALL TOOLS AND LIGHTNING PROTECTION								100	SUITABLE
TOTAL(USD):						/	/	2585	FOB SHANGHAI

SINGLE PHASE 10KW ON GRID SYSTEM (45KWH/Daily Output)
TYPE	MODEL	SPECIFICATION	QUANTIT Y	UNIT (USD)	AMOUNT (USD)	MARK
SOLAR PANEL	GKA550	42.3V, 13A, 10PCS/ARRAY*2	20	63	1260	11000W ,DAILY 45KWH
SOLAR INVERTER	INVT XG10KTL	MAX:15KW ,80-560V, 28A,2MPPT	1	554	554	SOLIS, GROWATT, DEYE OPTIONAL
AC COMBINER BOX	AC-02	SPD, Protection,Breaker	1	139	139	CE
SOLAR CABLE	4MM2	MAX CURRENT 32A	200	0.61	122	CE,TUV
PV CONNECTOR	MC4	1000V,IP67	20	0.5	10	CE,TUV
MOUNTING SYSTEM	YK-PM01	ROOF (customize)	10000	0.04	400	ALUMINUM
INSTALL TOOLS AND LIGHTNING PROTECTION					100	SUITABLE
TOTAL(USD):			/	/	2585	FOB SHANGHAI

COMPANY PROFILE
Gamko Energy, Solar panel manufacturer. Produce 5W-800W mono and poly solar panel, flexible solar panel, bi-facial solar panels. As a professional solar module manufacturer, Gamko with 7 years experience in production and quality control since 2017.
Gamko also a provider of technical services for solar power plant (on-grid and off-grid), including technical design, transport, installation and maintenance. In 2023, Gamko annual capacity 1.2GW. Gamko modules have been certified by CE-EMC, CE-LVD, INMETRO, ROHS, JPEA, FCC, IEC61215,IEC61730, IEC62321,IEC61000, ISO9001, ISO14001, German EPR,France EPR.
KEY FEATURES OF GAMKO SOLAR PANEL:
1, High performance in Low light condition , stable output from 6am until 6pm. High voltage.
2, High efficiency, solar module up to 23% efficiency.
3,Top-corn and Perc technology.
4,Three steps quality control of EL testing, Flash testing. Automatic production line to avoid hidden cracks.
5, Warranty cover all the solar panel 30 years.
If you need the best price, the best quality, the most secure payment method, GAMKO is your best choice.
FAQ:
1 Can I arrange personnel to stay in the factory or inspect the goods before shipment, and then pay the final payment after passing the inspection?
Yes, our customers often to use BV, SGS and other third-party companies to carry out on-site testing and inspection services. Our company will fully cooperate with the third-party company, We hope to form a long-term and stable cooperative relationship in the case of customer recognition. Besides, for the value of goods exceeding two containers, we will bear the inspection cost of the third-party company. For some countries that need CQC certification, we will also cooperate to provide.
2 If the solar panels have problems after 10 years, how can I apply for compensation?
First of all, we will provide warranty and flash test report with product barcode when we ship out, the picture is as below:
3 Can you provide PV system design and package sale service of the whole system? Can you provide installation guidance and door-to-door installation service?
Yes, we have professional engineers for preliminary design on grid,off grid and hybrid systems, but the largest system, we have designed overseas is 1.27MW. If there is a larger system, we suggest that the customer can seek the design of the local power company, and we will provide quotations according to the material list, and we will provide transportation service to the port. For the system design, we will provide the data collection form for the customer to fill in, including land information, grid voltage, etc. During the quotation process, we will also provide the bracket drawings for the customer's reference. For the installation part, our company can provide remote and online guidance service. At present there is no door-to-door installation service.
4 Can you provide DDP price? Can we make a lower invoice to reduce the import tariff?
Yes, we can. But in fact, DDP is not cost-effective, because the seller does not much know the destination country's land freight and the tax policy, and can only charge the customer in accordance with the principle of the highest. It is recommended to take the CIP terms. Buyers can find an experienced agent in their own country to help declare tax at the cheapest price, there will be many such agents in port cities. As for the requirement of low invoice, we can cooperate to do it, but buyers need to consider the risk.

---
