Complete Expanded Polystyrene EPS Block Panel Production Line

Product Description

Product Future:
The machine is made up of several key components. These include the mold, which is made from stainless steel and is designed to withstand high temperatures and pressures. The vacuum pump is an integral part of the system, as it is responsible for creating the suction force necessary to draw the air out of the mold.

The heating system is another important component, as it is responsible for melting the polystyrene beads and bringing them to the appropriate temperature for molding. This usually involves a combination of electric heaters and steam injection.

The EPS Vacuum Block Machine can operate in either automatic or manual mode, depending on the configuration. In automatic mode, the machine will continuously cycle through the molding process, while in manual mode, the operator will have more control over the process.

One of the advantages of this machine is its versatility. It can be used to produce blocks of various sizes and densities, making it suitable for a wide range of applications. Additionally, the quality of the finished product is generally high, with few defects or inconsistencies.

In terms of maintenance, the EPS Vacuum Block Machine requires regular cleaning and lubrication to ensure smooth operation. It is also important to keep the mold temperature and pressure within the recommended range to prevent damage to the machine.

Overall, the EPS Vacuum Block Machine is a reliable and efficient piece of equipment for manufacturing EPS blocks. Its versatility, high-quality output, and ease of operation make it a popular choice for companies in the packaging, construction, and insulation industries, among others.

TECHNICAL DATA
Item		PSB-DF200	PSB-DF300	PSB-DF400	PSB-DF600	PSB-DF800
Mould Cavity Size		2040*1240*630(mm)	3060*1240*630(mm)	4080*1240*630(mm)	6100*(1240-940)*630(mm)	8120*(1240-940)*630(mm)
Block Size		2000*1200*600(mm)	3000*1200*600(mm)	4000*1200*600(mm)	6000*(1200-900)*600(mm)	8000*(1200-900)*600(mm)
Steam	Entry Consumption Pressure	DN40 20-30kg/cycle 0.8MPa	DN65 30-40kg/cycle 0.8MPa	DN100 45-55kg/cycle 0.8MPa	DN100 60-70kg/cycle 0.8MPa	DN150 80-100kg/cycle 0.8MPa
Compressed Air	Entry Consumption Pressure	DN40 1-1.5m³ /cycle 0.6MPa	DN40 1.5-1.8m³ /cycle 0.6MPa	DN40 1.8-2m³ /cycle 0.6MPa	DN40 2-2.3m³ /cycle 0.6MPa	DN40 2.2-2.5m³ /cycle 0.6MPa
Drainage	Steam Vent Blower exit	Φ 100mm Φ 100mm	Φ 125mm Φ 125mm	Φ 200mm Φ 150mm	Φ 200mm Φ 150mm	Φ 200mm Φ 150mm
Throughout	15kg/m³	12min/cycle	15min/cycle	18min/cycle	18min/cycle	18min/cycle
Connected Load		9.5Kw	9.5Kw	13Kw	13Kw	13Kw
Overall Dimension		4000*2150*2120(mm)	5030*2270*2120(mm)	6040*2270*2250(mm)	8100*2500*3100(mm)	11300*2600*3300(mm)
Weight		4200kg	6000kg	8500kg	9500kg	13800kg
Room Height Required		6000mm	6000mm	6000mm	6000mm	6000mm

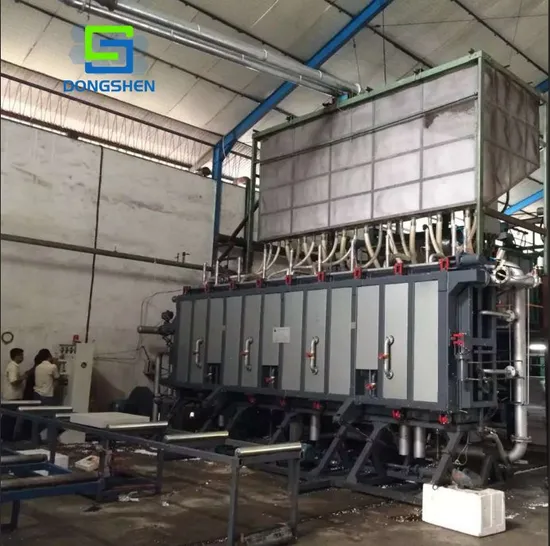

Machines in Customers'factories
We have machines in America,Romania,Ukrain,Uzbekstan,Mexico,Malta,Russia,Indonesia,Malaysia,India etc.We have EPS sample factories in Indonesia,India,Uzbekstan,Turkey,Malta,Bulgaria,Russia etc.
Our Company:
Hangzhou Fuyang Wealth Imp&Exp Co.,Ltd is a company specially dealing with EPS machines, molds and spare parts. Having strong technical team, we help clients to design their new factory and supply whole turn-key project to them, also we help old EPS factories to improve their production by reducing energy consumption and increasing production capacity. Apart from that, we offer the service of designing.

---
