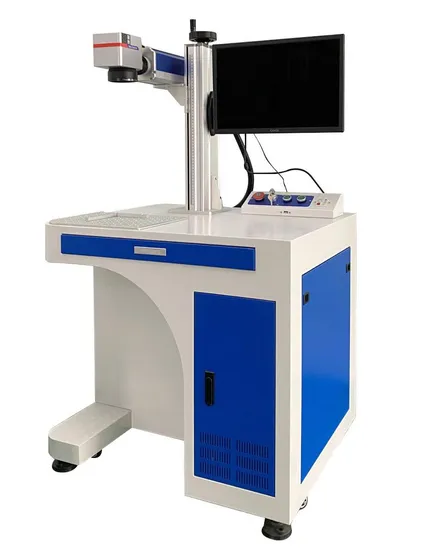

High Precisionfiber Mopa Laser Marking Machine Qm-Ydflp-50W-M8 Laser Marking

Product Description

Detailed Photos



Product Parameters

Model number						QM-YDFLP50-M8
Average output power(W)						≥50
M2						<1.4
Maximum pulse energy(mJ)						4
Adjustable frequency range(kHz)						1-4000
Pulse width(ns)						1-350
Output power instability(%)						< 5
Cooling method						air cooling
Supply Voltage(V)						220
Power supply power(W)						550
Center wavelength(nm)						1064
Spectral width@3dB(nm)						< 15
Direction of polarization (of waves)						arbitrarily
Anti High Reflective						YES
Beam diameter(mm)						7±1.0
Power Adjustment Range(% )						0~ 100
Operating Temperature Range (ºC)						10 ~ 40
Storage temperature range (ºC)						-10~60
Lasers						JPT M8
Laser life(h)						100000
Disposables						no
Marking range(mm)						100x100mm-300x300mm
Microscope						RC1001
Software/Board						JCZ/BSL
Support for computer systems						Win7/10/xp
Supported File Formats						DWG/ DFX/BMP/ IPN/ PNG/ TIF/ TAG/ PDF/PLT etc . .
Machine Size(cm)						80x60x145
Weights(kg)						82

Company Profile
NINGBO YZHAO INTELLIGENT MACHINE Co., Ltd. is a national high-tech enterprise, dedicating to the Research & development and manufacturing of precise CNc lathe, machine center, digital & automatic production line, With the headquarter in Fenghua, Ningbo, China. Company has its own production base of 20000 square meters, has the capability of making 6000PCS/sets machines per year.Since the foundation in 2008, driven by ongoing scientific & technical innovation, now already have a strong technique team, with European specialist three people, high-medium technician more than thirty. For better serving the esteem customers, YZHAO fully take the advantages of advanced concept and technology from EU like Italy and GER., connecting with the domestic actual manufacturing situation, for years focus on the innovation, R&D and production on the CNc turning process & smart manufacturer, forming a dozen of high performance CNC lathe machines, like P series CNC lathe with flat bed in gang tools, X series CNC lathe with slant bed in gang tools, M series turret machines, S series turning & milling centers with double spindles, and forming a dozen of high performance machine centers, T series tapping centers, V series vertical machine centers, H series horizontal machine centers, VF series 5 axis machine centers, and especially for the customized automation having the obvious features of stability & compatibility, B series automation for shaft parts, H series gantry loader automation, G series six arm robots automation, among which, the in house built-in synchronous electric spindle (from Italy technology) plays a prominent part in the precise positioning of turning & milling center application, which with a number of independent invention patents, always in the leading position of CNCturning & smart manufacturing field, going through years of rich experiences in practical application, bring to the customers more and more feasible custom-made technique solutions and turnkey projects, gaining a very good reputation in the domestic and overseas market. With strong R&D team and strength, based on mutual benefit & win-win and customized service principle, bold investment in innovation, ongoing accumulation of experiences , YZHAO is committed to bring the biggest economic benefits to more and more enterprises.

FAQ

1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, wier cutting machine,cnc machine center
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.

---
