Intelligent Veterinary Anesthesia Ventilator Animal Anesthesia Machine Vet Ventilator

Product Description

Veterinary Anesthesia Ventilator
Intelligent Veterinary Anesthesia Ventilator Animal Anesthesia Ventilator General Anesthesia Ventilator Vet Anesthesia Ventilator Anesthesia Ventilator Machine Portable Anesthesia Ventilator Anesthesia Ventilator Bellows Anesthesia Breathing Ventilator Anesthesia Ventilator Circuit

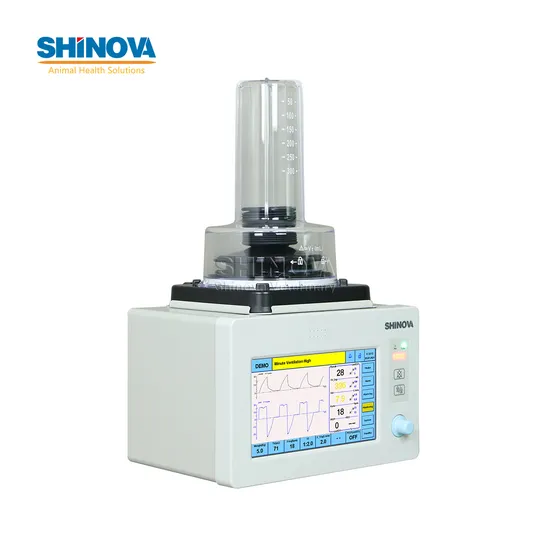

Model: LifeSaver-D
Detailed Photos
Product Description 1. Features
Veterinary anesthesia ventilator LifeSaver-D is widely used in veterinary hospital, animal R&D institute, university laboratory, animal clinic, zoo, etc., and it matches any other brands of anesthesia machine. Compact and save the space. Light and easy to move Automatically calculation by weight to the other parameters With breathing mode PCV mode, achieve the breathing automatically Assure the animal more comfortable With big animal bellow and small animal bellow Gas source pipeline take the high precious gas source, no leakage forever HD TFT Touch screen to make operation easy and simple Built-in battery to support more than two hours in case of power failure Matching with different brands of veterinary anesthesia machine 2. Specifications

Basic description
Parameter		Description
Display		9-inch TFT touch screen
Drive gas	Gas type	O2 or Air
	Inlet pressure	280-600 kPa.
	Max flow	≤ 120 L / min.
Operating Mode		VCV, PCV, SPONT, Manual, Demo
Waveform		Waveform: Pressure, Flow-rate, Volume Loop: PV loop, PF loop, FV loop
Safety Pressure		System pressure does not exceed 6 KPa
Battery Type		Li-ion, work time more than 2 hours

Parameters setting range
Parameter	Description
Tidal volume	Range: 20 - 1500ml
Respiratory rate	Range: 1 ~ 150 bpm
Inspiratory time	Range: 0.1 ~ 12s
Breathing ratio	Range: 9.9:1 to 1:9.9
Percentage of inspiratory pause	Range: 0 to 50%
PEEP	Range: OFF, 3 ~ 20 cmH2O
Support Pressure	Range: 0 ~ 60 cmH2O
Inspiratory Pressure	Range: 2 ~ 60 cmH2O
Flow trigger	Range: 0.5 ~ 20L/min
Pressure Trigger	Range: -1 ~ -20 cmH2O
PSV Insp Termination Level	25%

Monitoring parameters
Parameter	Description
Inspiratory tidal volume	Range: 0 ~ 2500 mL
Expiratory tidal volume	Range: 0 ~ 2500 mL
Minute ventilation	Display Range: 0 ~ 99L/min Using Range: 0 ~ 25L/min
Spontaneous minute ventilation	Display Range: 0 ~ 99L/min Using Range: 0 ~ 25L/min
Peak airway pressure	Range: 0 ~ 80 cmH2O
Mean airway pressure	Range: 0 ~ 80 cmH2O
FiO2(optional)	Range: 15 to 100%
