US$7,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Knife Classification
Piece Knife Crusher
Knife Roll
Solid Knife Roller
Computerized
Computerized
Certification
CE, ISO9001:2008
Blade Design
German Design
Production Capacity
170kg/Hr
Packaging & Delivery
Package Size
2500.00cm * 200.00cm * 200.00cm
Package Gross Weight
3000.000kg
Product Description
Product description:

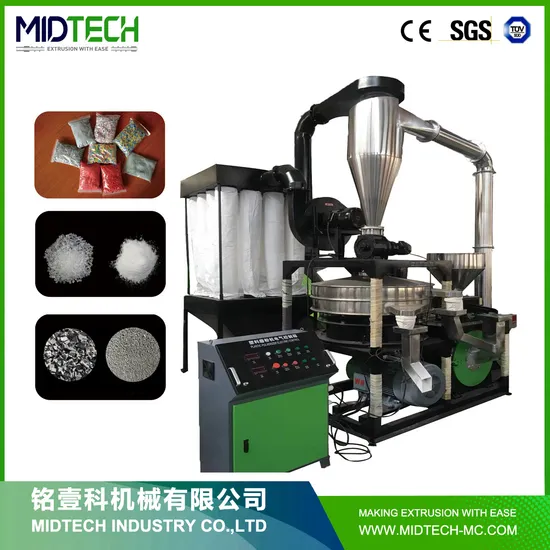

The automatic plastic grinding mill machine which has the advantages of high output with lower-power consumption. This machine can be used for powder processing of polyethlene (PE), ( PVC), polypropylene (pp),polystyrene (ps),ABS, nylon and other plastic materials.
SpecificationsDisc plastic pulverizer
1.high output
2.good quality
3.Long blades life.
Performance characteristics the new disc design is used ,high-yield,strong resistance and the life of grinding disc is double the ordinary. the use of newly designed professional bearings ,and reached a high rotation rate ,at the same time using only one drive motor ,to ensure the efficient grinding crash,which greatly saves the time and operation of machinery and control engineering . installation and maintenance easy ,open the door to cover clean-up milling process of the whole seal,without dust leakage full automated ,automatic feeding ,the materials and sorting grinding gap adjustment is simple ,just use the plug-foot bolts and adjustments can be fine-tuning the host used the water and wind double cooling system ,rational design of smaller cross-section of the grinding chamber ,grinding is almost flat vertical surface.material entered the grinding chambers soon as caught, ground,and then rapidly removed,which eliminates the grinding chamber of the surge in materials,heating materials to avoid decomposition,resulting in improved production
Main Parameters:
| Model No. | MF-300 | MF-400 | MF-500 | MF-600 | MF-800 |
| Disc Dia. (mm) | Ø 300 | Ø400 | Ø 500 | Ø 600 | Ø 800 |
| Grinding chamber dia. (mm) | Ø 250 | Ø 350 | Ø 450 | Ø 550 | Ø750 |
| Main motor power (kw) | 7.5-11 | 22-30 | 37-45 | 45-55 | 75-90 |
| Cooling way | Water cooling |
| Fan power(kw) | 2.2 | 3 | 4 | 5.5 | 11.5 |
| Vibrosieve power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 |
| Capacity (kg/h) | 50-120 | 120-200 | 180-400 | 260-600 | 550-950 |
| Machine size (mm) | 1500×1100×3200 | 1700×1500×3400 | 1800×1600×3600 | 1900×1700×3800 | 2300×1900×4200 |
| Machine weight(kg) | 1100 | 1200 | 1600 | 2200 | 3500 |
>>
