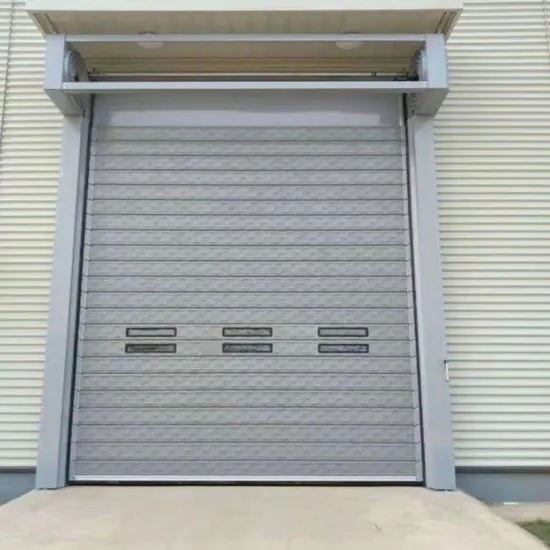

Fast Aluminum Hard Metal Cool Room Sliding Door Overhead Insulated Dust Proof High Speed Rolling up Gate

Product Description

MORE PARAMETERS
Item	Description
Mateiral	Aluminum Alloy Profile(with or without PU Sandwich ) Transparent PVC Strip
Thickness of Material	Double-layer Aluminum with PU Sandwich, plate thickness: 0.8 mm Double-layer Aluminum without PU Sandwich, plate thickness: 1.2mm
Thickness of Panel	thickness:40mm,the surface is treated by anodizing and organic coloring
Foam Density	50kg / m3
Speed	1 ~ 2.5 m / s
Wind Resistance	Beaufort scale 12 (35 m / s)
Color	White / Grey / Sliver / Blue / Red / Customer-tailor
Noise Level	< 60dB
Lifting way	90°Vertical Lift / Turbo Type / Ellipse Type
Max Dimension	5000*7500 MM
Drive System	Servo Motor 220V 50HZ / 380V 50HZ, 0.75Kw, 1.1Kw,1.5Kw,2.2Kw
Control System	Frequency Converter + PLC or Servo Type
Heat preservation	Broken bridge thermal insulation structure K<0.6W/(m2•K)
Sealing	Guide rail seal, door panel middle seal, door body top seal and door body bottom seal
End Buffer Function	End buffer technology can effectively protect the rigid damage of reducer and operating mechanism and prolong the service life of the door
Safety	1) Photocell Sensor 2) Airbag Installed at Door Edge Bottom

Remarks:
1. Shanghai XIFEI Door Industry Co., Ltd is a professional enterprise engaged in industrial door design, manufacturing,
sales & installation and after-sales service.
2. The company introduces advanced equipment and technology, design a variety of products according to customer
needs, aims to support customers with high-quality products and professional solutions.
3. The company mainly produce steel door, wood door, fire door, high speed door, sectional door, roller shutter door,
hangar door, logistic docking system and so on.
4. Honors and Certifications:
a. China AAA Enterprise
b. ISO9001: 2000 Management Certification
c. CE Certification

---
