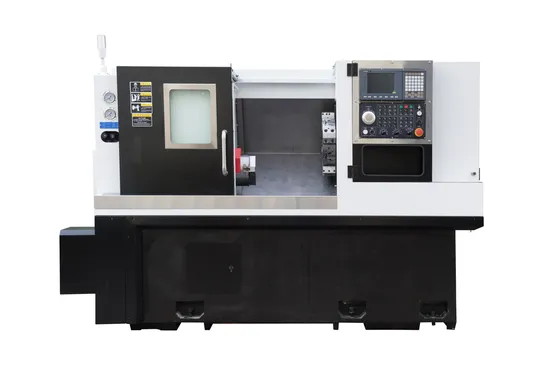

La3900-300 Slant Bed CNC Machine 300mm Bar Machining Machine Tailstock CNC Lathe

Product Description

Product Description
Detailed Photos
Product Parameters

No.	Name	Quantity	Supplier			Remark
1	System	1set	GSK980TC3			SYNTEC 6AT
2	Spindle servo driver + AC servo stator	1set	Weichuang			Electric spindle 7.5KW
3	Hardware current loop servo driver + 23-bit 5-pole motor	each 1set	GSK Original			X axis 1.5kw brake Z axis 1.5kw
4	Spindle front bearing NN3017K	1set	NSK	SKF	LYC
5	Spindle rear bearing 7014	1set	NSK	SKF	LYC
6	X,Z axis screw bearing	Each 1 set	NSK	SKF	LYC
7	X,Z axis ball screw	Each 1 set	Taiwan(SHAC)
8	X axis linear guide rail	2pcs	HIWIN			Roller
9	Z axis linear guide rail	2pcs	HIWIN			Roller
10	Spindle	1	Xinshiheng			A2-5/A2-6 Ø46/Ø56
11	Turret	1	Taiwan Nafeng			80--8T--280
12	Cutting fluid pump	1	Zegong
13	Auto Lubriction System	1	Taizhou Qiantong
14	X,Z axis coupling	each 1	Jiangsu
15	Hydraulic chuck	1	Dingchang
16	Hydraulic tailstock	1	Xinshiheng			Mohs 5

Machining Capacity	Tool post specification		80825
	Maximum turning diameter of the bed	mm	450
	Standard machining diameter	mm	160
	Maximum machining diameter	mm	280
	Maximum machining length	mm	300
	Bar machining diameter	mm	35/45
Stroke	X axis stroke	mm	180
	Z axis stroke	mm	300
Spindle	Speed	RPM	A2-5:5000,suggest in 3000 A2-6:4000,suggest in 2500
	Spindle nose		A2-5/A2-6
	Spindle hole diameter	mm	48/56
	Bearing inner diameter	mm	85/90
Tool post	Tool post form		Straight mounted type
	Tool install quantity	unit	8
	the height of the rectangle tool shank	mm	25
	Diameter of boring bar shank	mm	32
Tailstock	Tailstock stroke	mm	140
	Diameter of tailstock sleeve	mm	75
	Taper of tail seat sleeve cone hole		MT.5
	Tailstock sleeve stroke	mm	100
Feeding velocity	Fast feeding velocity	m/min	X:30 / Z:30
Motor	Spindle motor (30min 60%/ continuous)	kW	7.5/11
	Turret motor	kW	-
	Feeding shaft motor	kW	X: 1.5 / Z: 1.5
	Hydraulic pump motor	kW	1.5
	Cutting fluid motor	kW	0.4
Supply power	Power supply power	kVA	11
Tank capacity	for hydraulic equipment	L	50
	for lubrication oil	L	2
	for cutting fluid	L	60
Machine tool volume	Height of machine	mm	1650
	The height from the ground to the centerline of the spindle	mm	980
	Floor space	mm x mm	2000 x 1400
	Weight	kg	2300

Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
