wheat and rice thresher
skype:sunnymachine
Tel/viber/whatsapp:008615838061376
Contact:Ms sunny
Application for wheat rice thresher:
Features for wheat rice thresher machine:
1,one time feeding material can be reach separating kernel,
straw, bran, and other surplus
2,low damage rate,high efficiency and quality
Application for wheat rice thresher:
This machine is mainly used for sorghum,paddy,,soybean,barley,wheat,millet,etc.
Specification for wheat rice thresher:
This machine consists of feed hopper,roller,screen,frame etc.
When the machine begins to work,feed the crop continuous evenly,crops on a
cylinder with sieve net rack by the assembly of friction,extrusion,collision and
dithering on the stem from that grain separation,from sieve out on the stem of
roller,by centrifugal role,and complete the threshing out aerosol propellant.
Models and parameter for wheat rice thresher:
model
| SLTD-135
| SLTD-125
| SLTD-100
| SLTD-70
| SLTD-50
|
Capacity
| 1200-1500kg/h
| 800-1200kg/h
| 750-1000kg/h
| 550-600kg/h
| 350-400kg/h
|
Measurement(mm)
(leng x width x height)
| 2400x2670x1530
| 2400x2480x1530
| 2300x2000x1500
| 1070x2060x1340
| 1400x900x1050
|
Power(kw)
| 13-15
| 11-13
| 7.5-11
| 7.5
| 5.5-7.5
|
gross weight(kg)
| 500
| 450
| 420
| 260
| 150
|
rotating speed(r/min)
| 1000
| 1000
| 1060
| 1200
| 1400
|
wrap angle of the concave
| 240
|
Gap(mm)
| 20 +5/-2
|
Rotating speed of the air blower(r/min)
| 2500
| 2400
| 2500
|
amplitude of the vibration sieve
| 40
| 20
| 14
|
frequency of the vibration sieve(HZ)
| 240
| 320
| 560
|
Main Performance Index for wheat rice thresher
The threshing main will function with the performance in Table 2 when the water ratio of wheat range between 15%-20%, ratio between grass and grain between 0.8-1.2, water ratio of rice between 15-28% and ratio of grass and grain between 1.0-2.4.

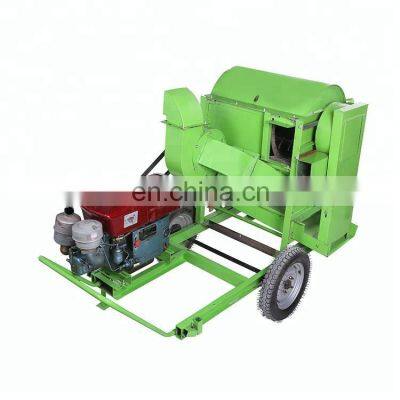

Wheat rice thresher with diesel engine:
Wheat rice thresher always in stock:
We also manufacture and provide many other kinds of agricultural machinery,if you are interested in such machines,please feel free to contact with us---Ms sunny.
And welcome to have visit for our factory!!!
>>
