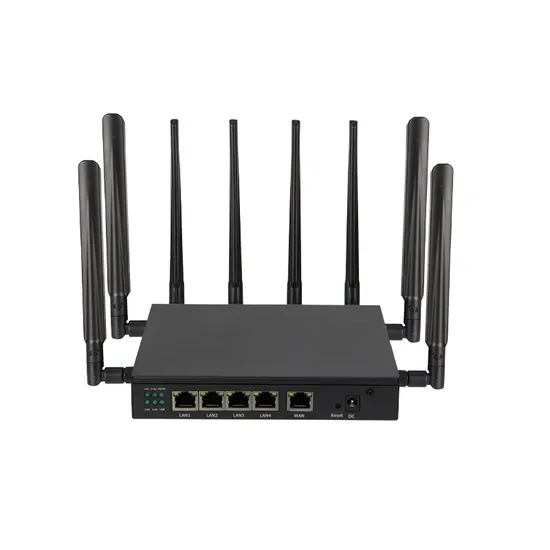

3000Mbps Dual Band WiFi6 Router 5g Dual Card Switchable 5g LTE Router with RM520n-Gl Module

Product Description

Product Description The 5G WiFi6 router is based on a new embedded platform to meet the growing demand for mobile devices.
The CPE is NSA/SA dual-mode compatible for all network types worldwide, which means you can enjoy ultra-fast broadband connectivity wherever you are by simply plug-and-playing.
Enjoy an ultra-fast broadband connection anywhere.
CPE brings new ways to experience VR/AR/4K/8K streaming freely and easily. Built-in 802.11ax (Wi-Fi 6) Technology, Single CPE With built-in 802.11ax (Wi-Fi 6) technology, a single CPE delivers more wireless coverage and more bandwidth. At the same time, CPE also brings higher security, better network

Hardware Description
Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip,
total speed up to 3000Mbps; High-speed 512 DDR3, with 256MB SPI Nand Flash
1WAN+4LAN 1000Madaptive network port ;
Support "one-key flashing mode", long press the reset button to enter the recovery mode;
Built-in M.2 interface for installing 5G cellular modules;;
External standard Nano SIM card slot ,Reserve Esim design and customize according to customer needs

specifications

WS1699 Hardware Specifications
Hardware Specifications	MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ DDR3 memory 512MB SPI NAND FLASH 256MB
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate	Dual-band concurrent up to 3000Mbps
Operating band	2.4GHz 5.8GHz
4G 5G Modem	5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps;UP 200 Mbps
5G NR	NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
	SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE	LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
	LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
UMTS	WCDMA B1/ 2/ 4/ 5/ 8/ 19
5G SA Sub-6 5G NSA Sub-6 LTE WCDMA	DL 2 Gbps; UL 1000 Mbps DL 2.6 Gbps; UL 650 Mbps DL 600 Gbps; UL 150 Mbps DL 42 Mbps; UL 11 Mbps
Output Power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
Receiving sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm
Antenna	4 x 7dbi high gain omni-directional wifi antennas, 4 x 7dbi high gain omni-directional 4G5G antennas
Interface	1*10/100M/1000M WAN port with automatic MDI/MDIX with LED 4*10/100M/1000M LAN ports, auto MDI/MDIX with LED 1*M.2 2*SIM card
LED	Power/WIFI/4G/5G
Button	1 Reset button,
Power adapter	DC 12/3000mA
Maximum power consumption	< 24W
Color scheme	Black
Accessories and Packaging	Egg separator paper tray 32*21*6cm *1PCS Whole box: 43.1*28.5*34.8 10PCS Power adapter 12V/3A *1PCS Super Category 5 network cable *1PCS

Detailed Photos

Company Profile
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included OpenWRT 4G5G wifi router, Vehicle 5G router, outdoor CPE, indoor CPE,MESH Router ,WIFI-6 Router ,4G OTT 4G5G Modem.HUASIFEI .with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries.
Packaging & Shipping
FAQ Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive? A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional. Q7. What is your payment term? A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you ! Q8. Can you customized logo and packaging? A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.

---
