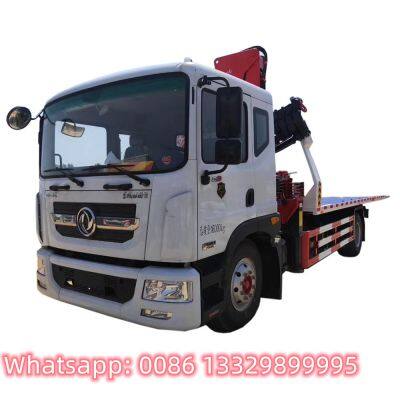

Dongfeng D9 8T wrecker towing truck with crane for sale,HOT SALE! Road wrecker towing vehicle with knuckle crane boom for sale
Wrecker towing truck is used for pulling the broken car,truck, bus or trailer, etc on highway and city road, suburb way ,airport, etc. It is made of chassis, hoisting equipment, lifting and towing equipment, hydraulic system, electric control system, truck body and the tool boxes. It combine the hoisting, lifting, towing functionm, etc. More information, please feel free to contact with Ms. Anita.
CLW brand wrekcer towing truck consists of the truck chassis, hoisting equipment, truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes. The tow truck can hoist, lift, draw, and be with other special functions, mainly used in highway, garage and city road obstacle cleaning.
As a professional road rescue truck supplier in China, we Chengli tow trucks can meet all your demand. Right hand wrecker tow trucks, left hand drive wrecker tow trucks, 4x2 wreckers, 4x4 wrecker truck, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker truck types, we produce flatbed tow truck, under lift wrecker truck, rotator tow truck, full landing wrecker tow truck, etc. More information, please call +86 13329899995.
Customized dongfeng D9 4*2 LHD 8T road wrecker towing truck with telescopic crane adopts Dongfeng D9 2315mm one row and a half driver cab, B6.2NS6B230 Cummins 230hp Euro 6 diesel engine, fastgear 8speed manual gearbox, 4.5tons front axle/10tons rear axle, 10.00R20 rail tires, power steering, ABS, air conditioner, 8/10+7 steel spring, etc.
The length of the flatbed for the dongfeng D9 wrecker tow truck is 5400mm; while the width of the flatbed is 2300m. Choose to install 5T telescopic/knuckle crane boom.
The standard devices of dongfeng D9 5tons road wrecker tow truck with crane boom is as below
1,5 tons loading capacity for the upper part/flatbed
2, 5T hydraulic winch and 25m length wire rope
3, 3.5tons loading capacity of rear towing arm(choose to install)
4, auxiliary wheels*1 sets
5, caller with alarm light
6, special binding belts*4sets
If you're interested in our dongfeng D9 wrecker towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
More pictures of Dongfeng D9 wrecker towing truck with knuckle crane boom for sale
Main technical parameters of Dongfeng D9 flatbed wrecker towing truck is as below.
Overall parameters
| Product name
| Dongfeng D9 5T flatbed wrecker tow truck with crane for sale
|
Manufacturer
| Chengli Special Automobile Co., Ltd.
|
Product model
| CLW5182TQZD6
|
Total mass(kgs)
| 18000
|
Rated mass(kgs)
|
|
Curb mass(kgs)
| 13300
|
Overall dimension (L*W*H)(mm)
| 8660×2550×3460,3500
|
Chassis parameters
| Driver cab
| Dongfeng D9 one row and a half driver cab
|
Approach/departure angle(°)
| 19/10
|
Front/rear suspension(mm)
| 1260/3000
|
Axles nos.
| 2
|
Wheelbase(mm)
| 4500/4700
|
Axle load(kgs)
| 6500/11500
|
Max speed(km/h)
| 89
|
Tire specification
| 10.00R20*6
|
Steel spring
| 8/10+7
|
Front/rear tread(mm)
| 1933/1806
|
Engine model
| B6.2NS6B230
|
Fuel type
| Diesel
|
Emission standard
| Euro Ⅵ
|
Gearbox
| Fastgear 8 speed gearbox, manual
|
Upper part parameters
| Flatbed dimension(L*W)(mm)
| 5400*2300
|
Hydraulic winch
| 5tons
|
Operation way
| Bilateral linkage operation
|
Loading capacity of the flatbed
| 5tons
|
Wire rope
| 25m length
|
Special binding belts
| 4 sets
|
Caller with alarm light
| Yes
|
Crane boom
| Choose to install 5tons/6.3tons telescopic/knucle crane boom
|
>>
