AT240 Series Single Yarn Sizing Machine is suitable for yarn sizing of cotton, flax, silk, wool, synthetic filament, etc.
As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specification
Model
| AT240
|
Number of spindles
| 2, 4, 8, 12 or customized
|
Sizing speed
| 20~300m/min
controlled by invertor and adjustable according to yarn kind
|
Heating method
| Steam heating or electric heating (optional)
|
Applicable yarn density
| 5~500tex, cotton, wool silk or chemical fiber
|
Motor power of rotation frame
| 0.18KW per spindle
|
Motor power of grooved drum
| 0.75KW per spindle
|
Heating power of oast
| 1.8KW per spindle
|
Motor power of heat circulation
| Approx.1.lKW
|
Power supply
| AC380V 50Hz, three-phase
|
Dimensions
| 3100*850*1750mm for 4 spindle machine, adding 1,900 mm for each additional 4 spindles, no change for width and height.
|
|
Weight
| N. T1000Kg. G.T 1100Kg for 6-spindle machine
|
|
Detailed Images

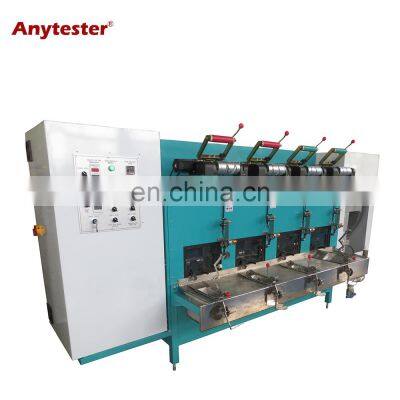

Overview of AT240
Independent control of each spindle, digital display
of tension index and digital display of speed of
rotating frame and counting of length. And rotating
frame storing 160 turns of yarn on it to increase the
drying time
Automatic Tension Control
single spindle control, the frequency controller
or steeples controller is used for cabbage
rotational motor in drying room. The yarn guide
cylinder is traced by the servo.
Motor
Grooved drum controlled by servo motor and
its rotation speed is automatically adjusted
according to the speed of rotating frame to
control the yarn tension
Automatic Speed Control
Grooved drum controlled by servo motor and its
rotation speed is automatically adjusted
according to the speed of rotating frame to
control the yarn tension
Sensor & Detector
Equipped with yarn tension measuring
device and yarn breaking detector which
make the machine easy to operate and high
efficient.
Packing & Delivery
Packaging
|
Size(cm)
| 310(L) * 85(W) * 175 (D)
|
Weight
| 1100Kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
|
30% T/T in advance,paid the balance before the payment
|
FOB
|
CFR(C&F)
|
30% T/T in advance,paid the balance again the copy of L/C
|
CIF
|
L/C
| L/C amount abve 50,000 usd, we can accpet L/C at sight
|
West Union
| Amount lower than 50,000 USD
|
Delivey Time
| 7~10days after receiving payment for one container
|
Related Products
AT241B Small Sample Warping Machine
| AT241C Automatic Single Yarn Warping Machine
| AT246A Semi-Automatic Sample Loom
| AT247 Automatic Air-Jet Sample Loom
|
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
