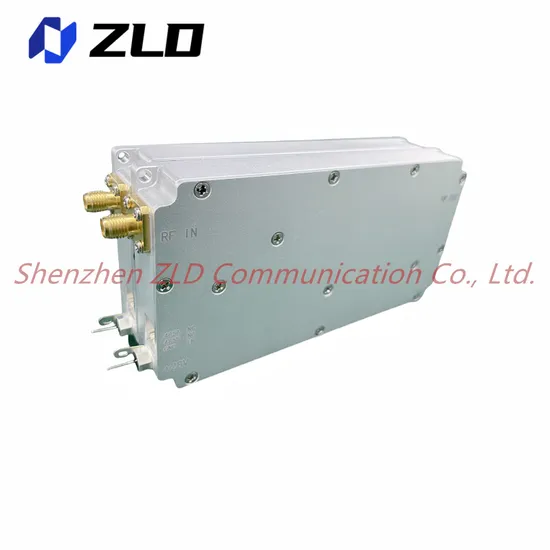

Custom 2100~2700MHz 30W RF PA Signal Power Amplifier Blocking Device Drone Jammer Module

Product Description

Product Description
2100~2700MHz 30 W Fpv Anti Drone Shielding Device RF Drone Jammer Module
Product Features
• 30W RF Signal Jammer Power Amplifier.
• 2100 ~ 2700MHz Operation Bandwidth.
• Comes with signal interference source.
• Power Amplifier with output short circuit or open circuit protection
Product Description
• The power amplifier module Applied to drone countermeasures and signal shielding.
• High efficiency power amplifier module, attached to an aluminum sub carrier.Product Parameters
Electrical Specifications

Parameter	Specification	Remark
Frequency Range	2100~2700MHz
Saturated Output Power	45±1dBm
Gain Flatness	≤3.0dB
Gain Stability	±1.5dBm	at -25ºC~+55ºC
Power stability	±1.5dBm	at -25ºC~+55ºC
Output VSWR	≤1.5
DC Input Voltage	DC28±1.0V
Current Consumption	4.5 A typ;5.5 A max.	@ Pout=50W CW, 50 ohms load
Power supply port	Through-hole capacitor
Working Temperature	-25~+55ºC
Monitoring interface	PHD2.0MM-2*3PIN Socket: PIN1-RS485A;PIN2-RS485B;PIN3-GND; PIN4,PIN5-NC, PIN6-Enable switch,Enable = 0V, Disable = 5V.
LTD pilot lamp	POWER:Power Supply pilot lamp; RUN:Run pilot lamp; ALARM:Fault alarm pilot lamp.
RF output connector	SMA-KFD
Dimension	150×79.5×24mm
Installation Dimension	144×73.5×24mm
Screw Size	4-Ø3.2mm
weight	0.4kg

Product Dimensions

---
